[GI4000] INVERTER GENERATOR ANOVA PETROL 4000W
Instructions

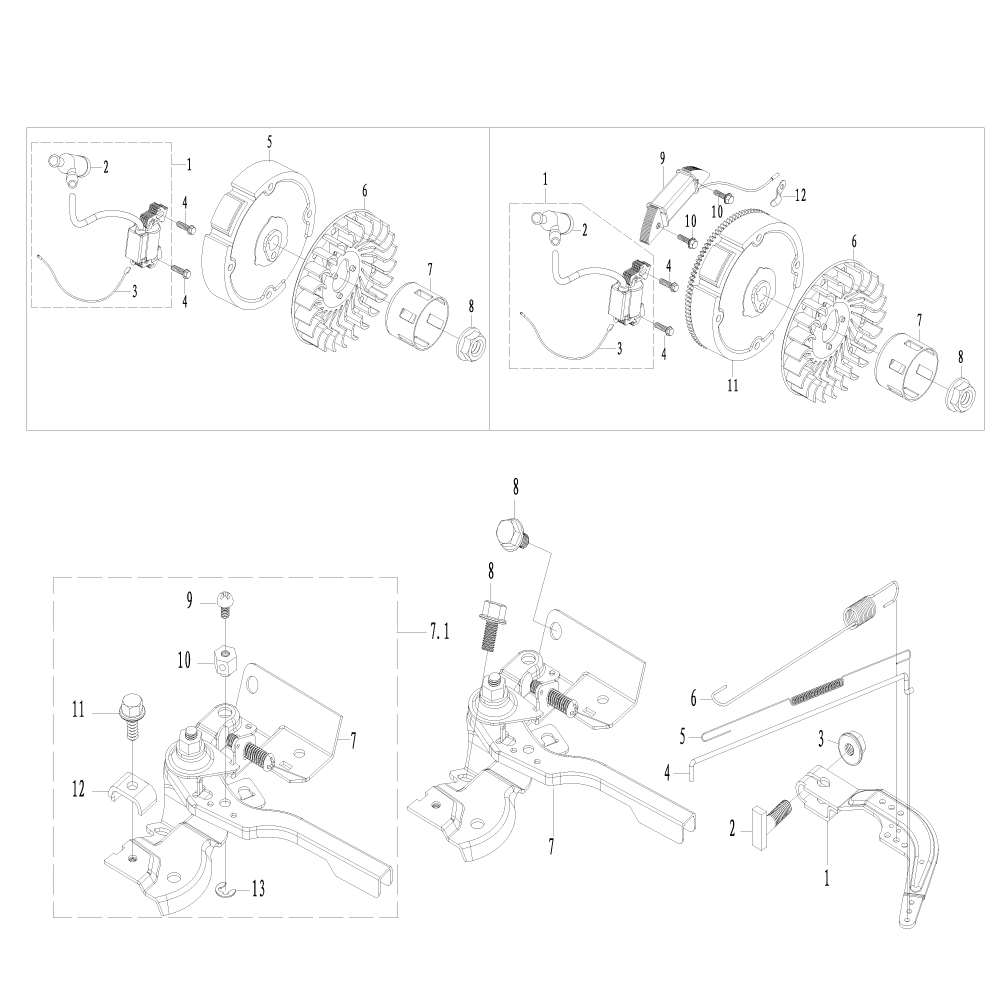

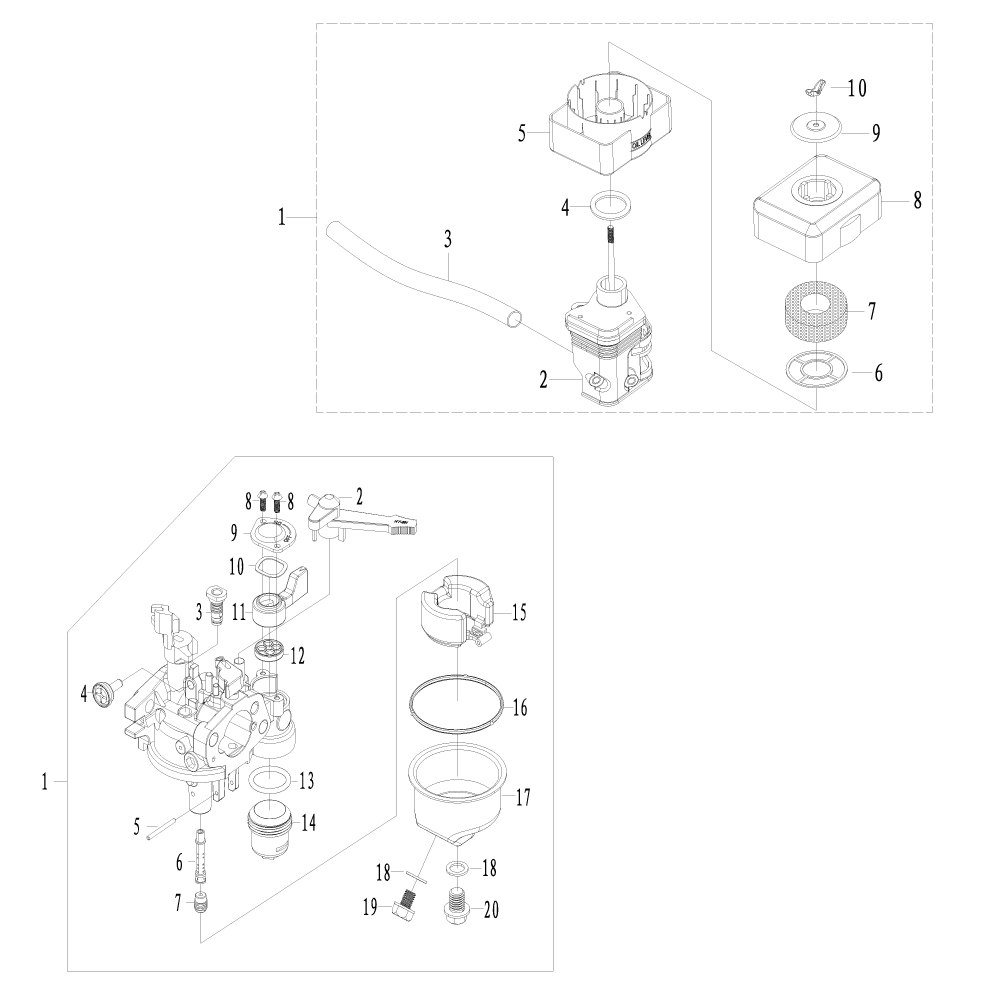

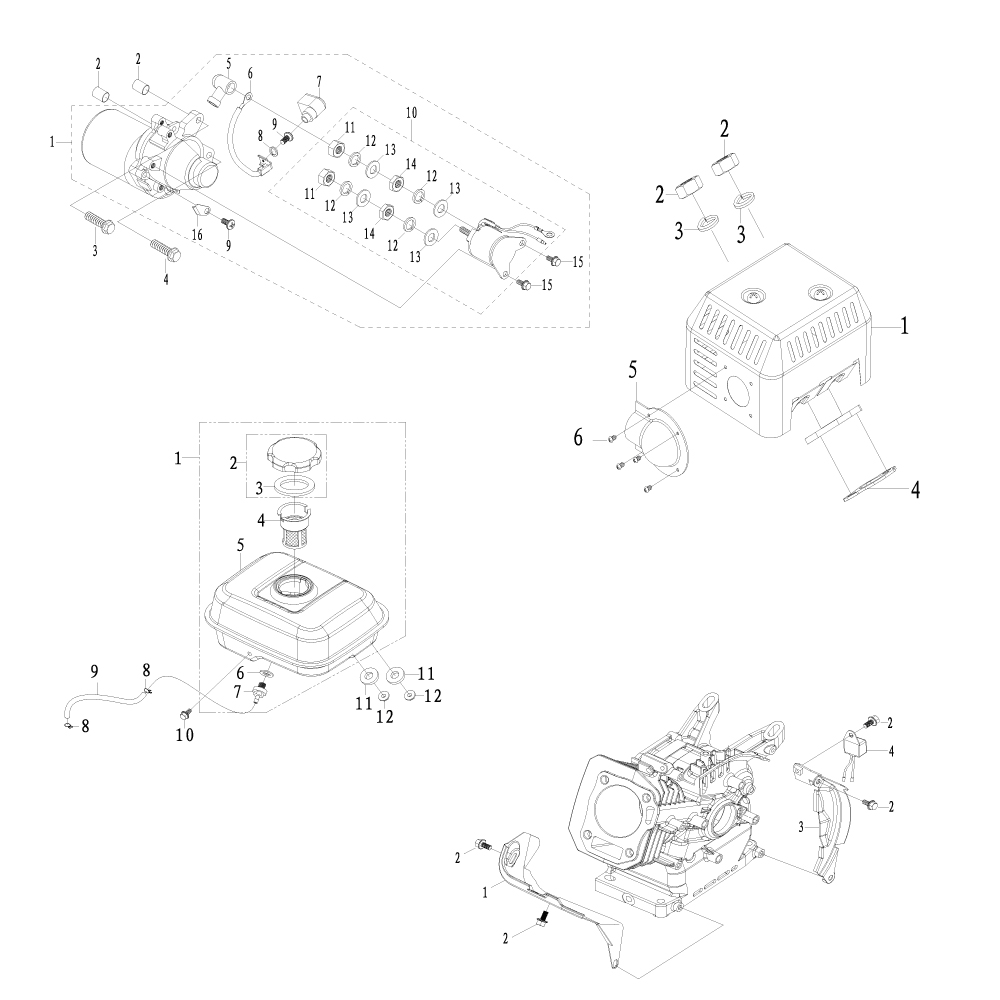

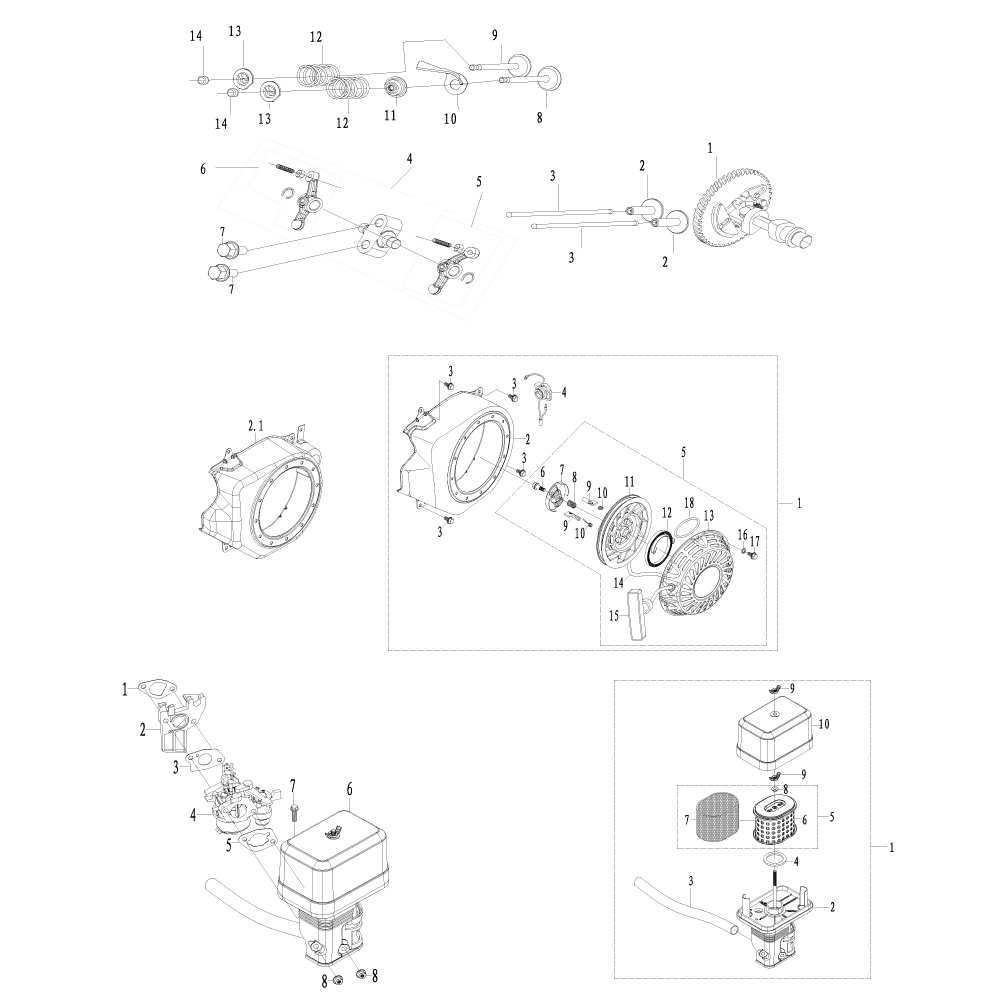

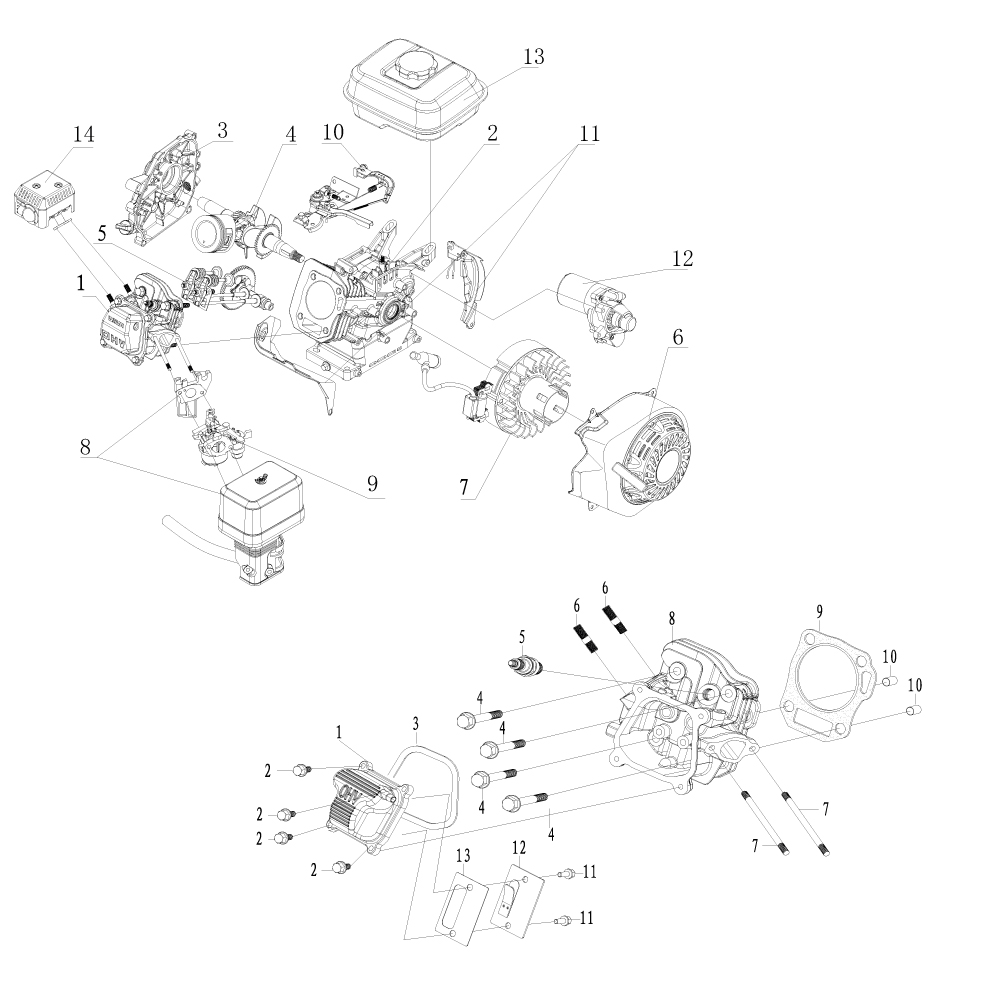

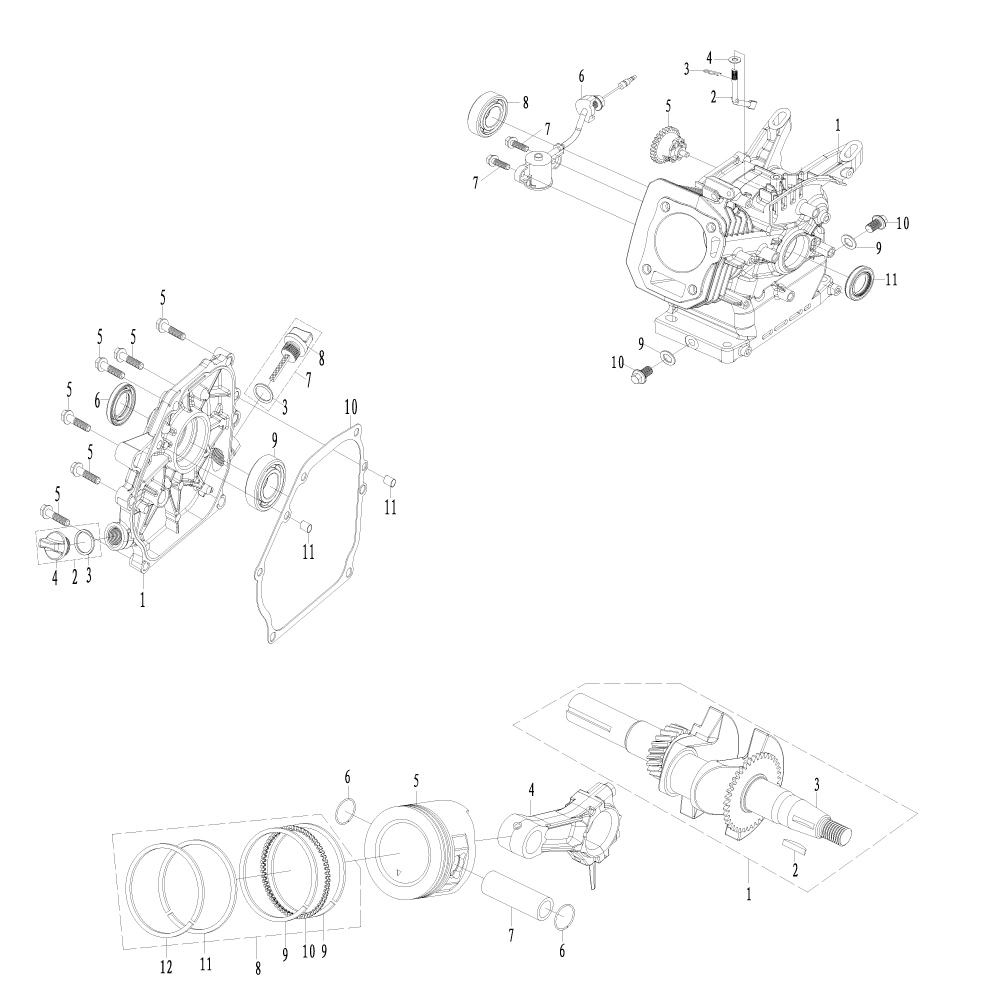

Select a quadrant on the exploded view to display the parts in that area. You can zoom into the exploded view.

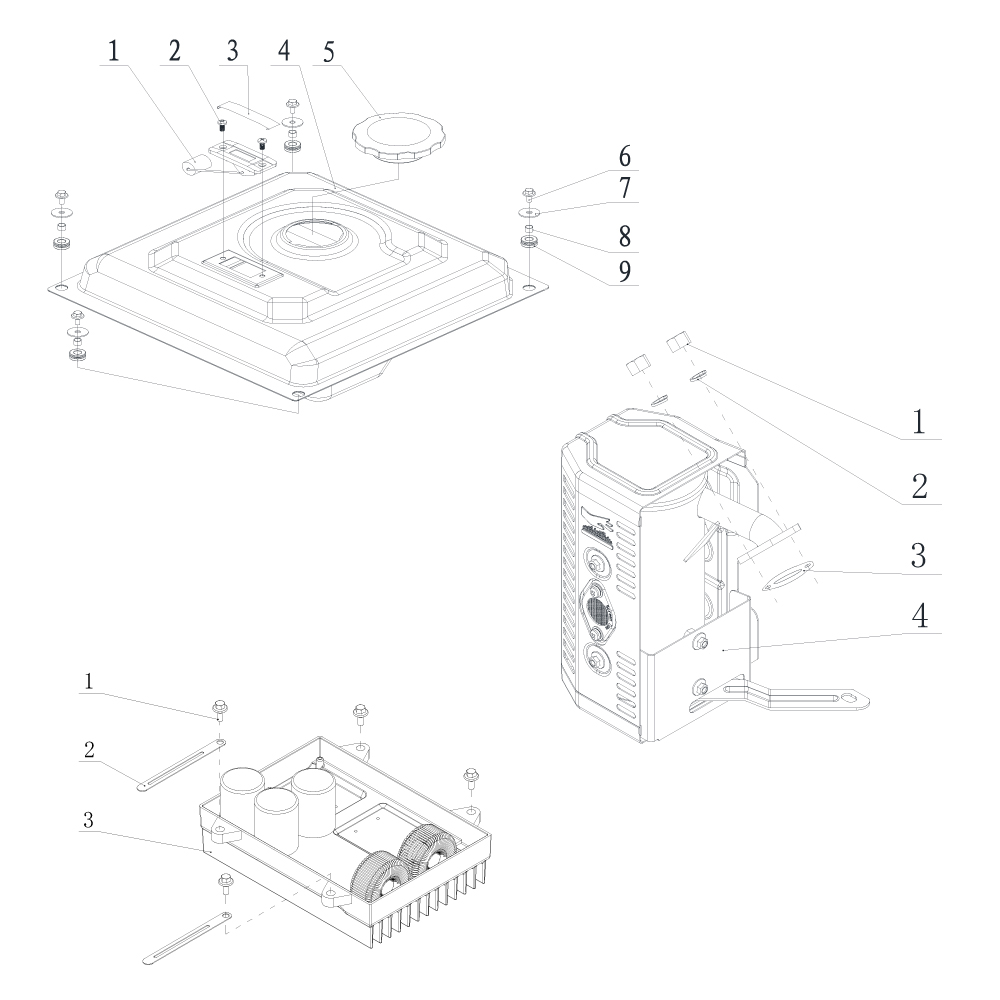

GI4000-002
- (B)
2B, 2C, 3B, 3C
1,2,1;1,1,1;1,1,2;1,2,2

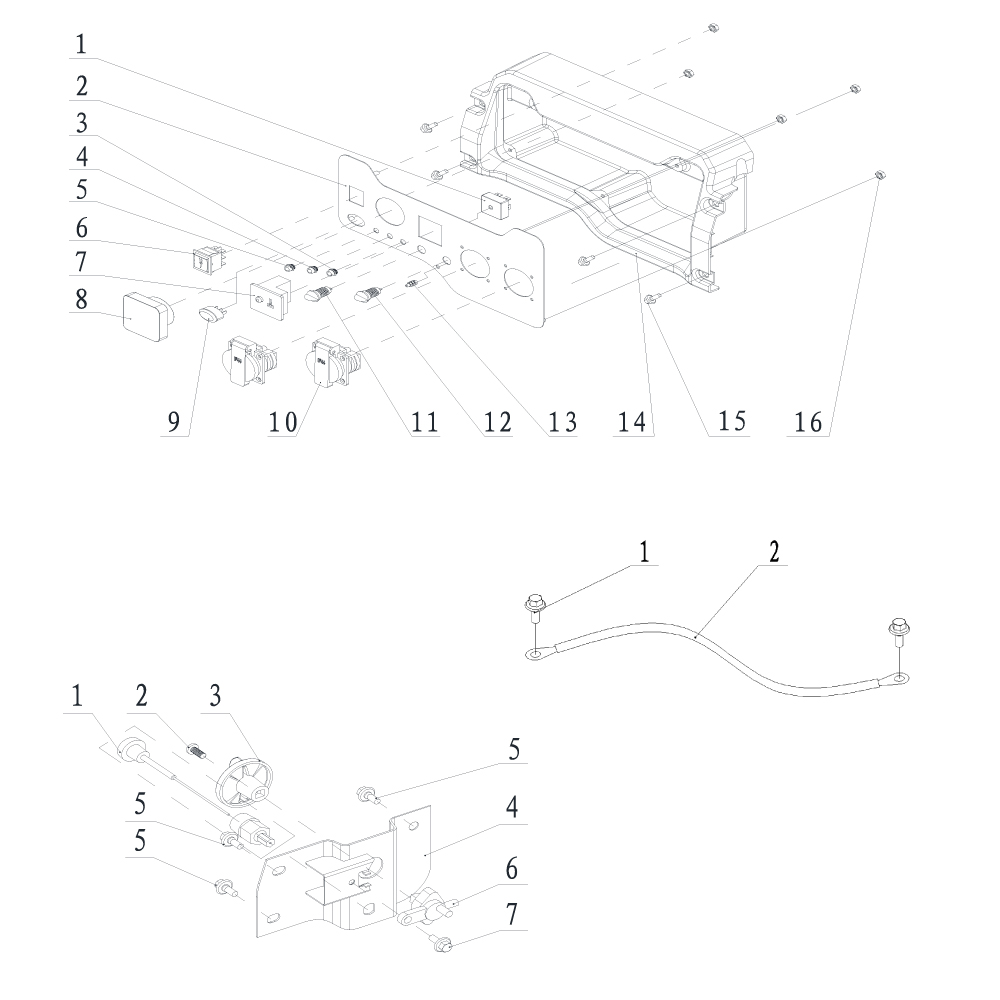

GI4000-003
- (A)
1A, 1B, 2A, 2B
0,0,0;0,0,1;0,1,1;0,1,0
GI4000-004
1-5 (B)
1A, 1B, 2A, 2B
1,0,0;1,1,0;1,1,1;1,0,1
GI4000-005
3 (B)
3A, 3B
1,1,2;1,0,2
GI4000-006
1 (A)
1A, 1B
0,0,0;0,1,0
GI4000 RED, YELLOW AND GREEN INDICATOR LIGHTS (3-5)
Ref: GI4000-007
Number: 3, 4, 5 (A)
Quadrants: 1A, 1B
GI4000-007
3, 4, 5 (A)
1A, 1B
0,0,0;0,1,0
GI4000-009
7 (A)
1A
0,0,0
GI4000-010
8 (A)
1A
0,0,0
GI4000-011
9 (A)
1A, 2A
0,0,0;0,0,1
GI4000-012
10 (A)
2A, 2B
0,0,1;0,1,1
GI4000-013
11 (A)
1A, 2B
0,0,0;0,1,1
GI4000-014
12 (A)
1B, 2B
0,1,1;0,1,0
GI4000-015
14(A)
1B, 1C, 2B
0,1,1;0,1,0;0,2,0

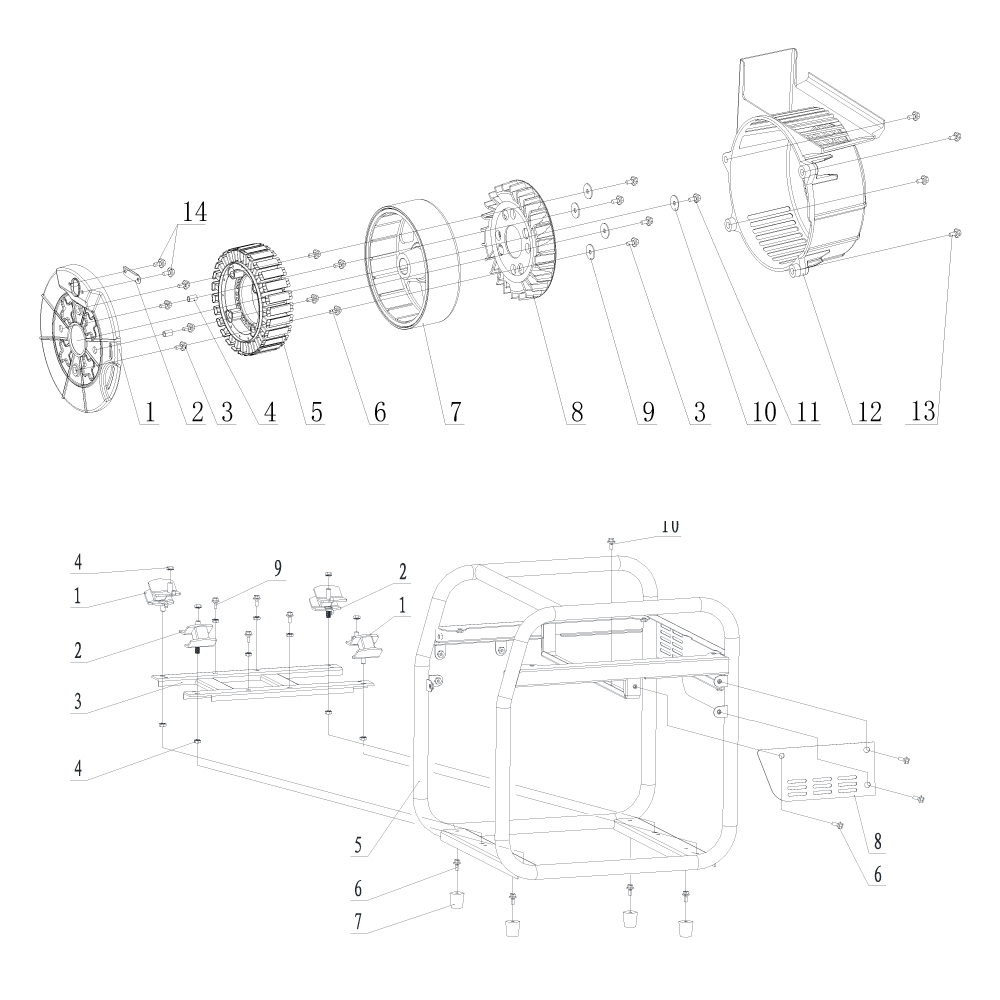

GI4000-016
1 (C)
2A, 2B
2,0,1;2,1,1
GI4000-017
2 (C)
2A, 2B
2,1,1;2,0,1
GI4000-018
7 (C)
3B, 3C
2,1,2;2,2,2
GI4000-022
4 (A)
3A, 3B
0,1,2;0,0,2
GI4000-024
1 (C)
1A, 2A
2,0,1;2,0,0
GI4000-025
2 (B)
3A
1,0,2
GI4000-026
5 (C)
1A, 2A
2,0,0;2,0,1
GI4000-027
7 (C)
1B, 2B
2,1,0;2,1,1
GI4000-029
12 (C)
1C, 2C
2,2,0;2,2,1
GI4000-030
8, 13 (C)
1B, 1C, 2B, 2C
2,1,0;2,2,0;2,1,1;2,2,1
GI4000-031
1-7 (A)
3A, 3B
0,0,2;0,1,2
GI4000-032
4 (F), 1 (G)
2A, 2B, 3A, 3A, 3B
5,0,2;6,0,1;6,1,1;6,1,2;6,0,2
