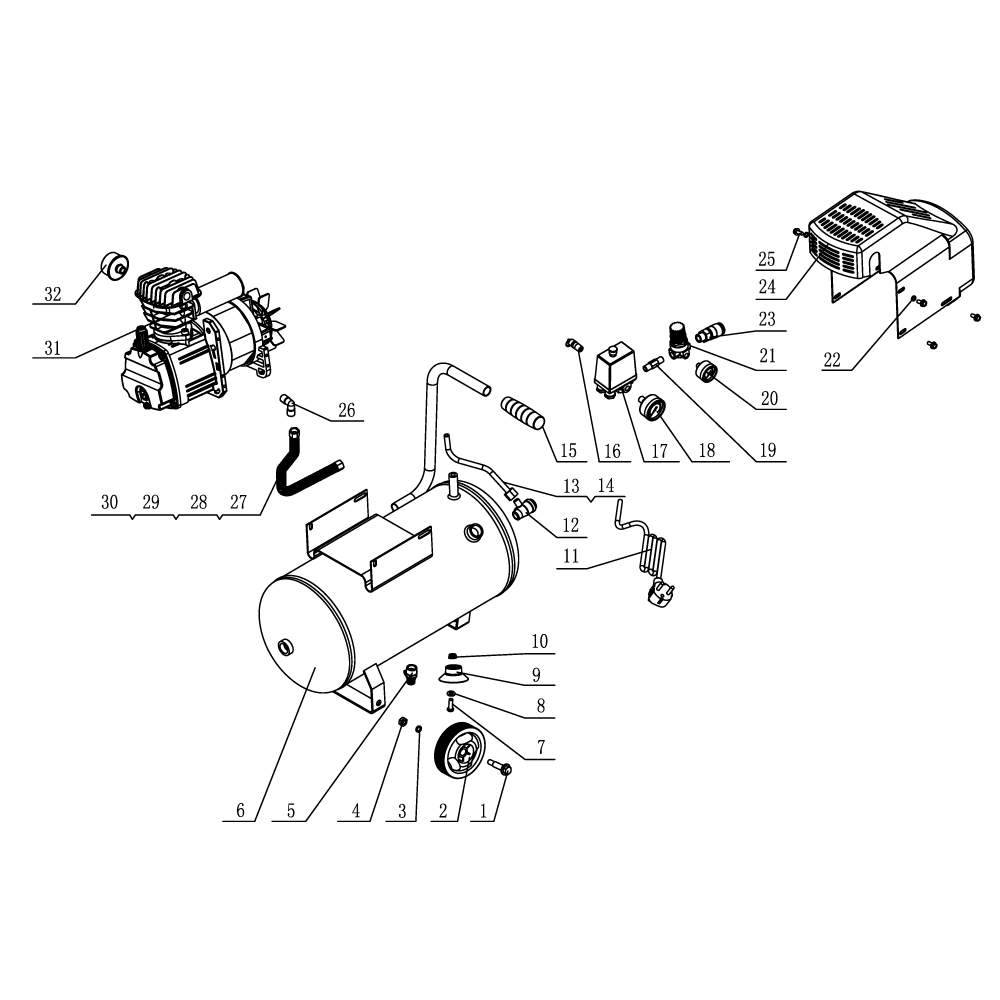

Exploded view CA24

[CA24] AIR COMPRESSOR ANOVA 24L

Instructions

Select a quadrant on the exploded view to display the parts in that area. You can zoom into the exploded view.

Ref: CA24 - AIR COMPRESSOR ANOVA 24L

See the pieces
A
B
C
1
2
3

Parte A

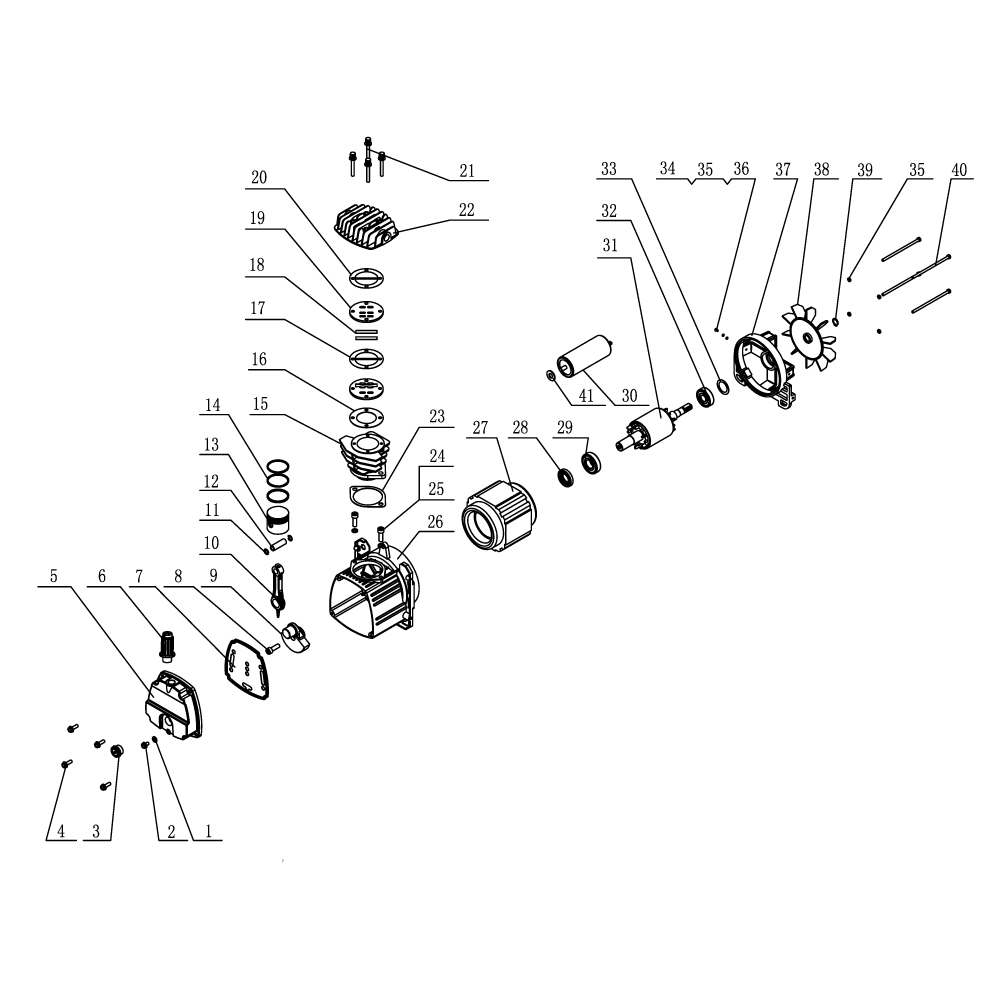

Motor (B)
OIL LEVEL SIGHT GLASS CA24 - CA50 (1)
OIL LEVEL SIGHT GLASS CA24 - CA50 (1) Ref: CA24-01
Number: 3 (B)
Quadrants: 3A
OIL CAP WITH BREATHER CA24 - CA50 (4)
OIL CAP WITH BREATHER CA24 - CA50 (4) Ref: CA24-02
Number: 6 (B)
Quadrants: 2A
CONNECTING ROD COMPRESSOR CA24 - CA50 (9)
CONNECTING ROD COMPRESSOR CA24 - CA50 (9) Ref: CA24-03
Number: 10 (B)
Quadrants: 2A
COMPRESSOR PISTON PIN CA24, CA50 (11)
COMPRESSOR PISTON PIN CA24, CA50 (11) Ref: CA24-04
Number: 12 (B)
Quadrants: 2A
COMPRESSOR PISTON CA24 - CA50 (12)
COMPRESSOR PISTON CA24 - CA50 (12) Ref: CA24-05
Number: 13 (B)
Quadrants: 2A
SET PISTON RINGS COMPRESSOR CA24, CA50 (13)
SET PISTON RINGS COMPRESSOR CA24, CA50 (13) Ref: CA24-06
Number: 14 (B)
Quadrants: 2A
COMPRESSOR CYLINDER CA24 - CA50 (18)
COMPRESSOR CYLINDER CA24 - CA50 (18) Ref: CA24-07
Number: 15 (B)
Quadrants: 2B
VALVE PLATE CA24 - CA50 (22)
VALVE PLATE CA24 - CA50 (22) Ref: CA24-10
Number: 19 (B)
Quadrants: 1B
COMPLETE AIR FILTER CA24 - CA50 (24) THREAD 16MM
COMPLETE AIR FILTER CA24 - CA50 (24) THREAD 16MM Ref: CA24-11
Number: 32 (A)
Quadrants: 1A
PIPE CONNECTION ELBOW CA24-CA50 (27)
PIPE CONNECTION ELBOW CA24-CA50 (27) Ref: CA24-12
Number: 26 (A)
Quadrants: 2A
AIR COMPRESSOR CONDENSER CA24 - CA50 (33)
AIR COMPRESSOR CONDENSER CA24 - CA50 (33) Ref: CA24-14
Number: 30 (B)
Quadrants: 2B
MOTOR WINDING CA24 - CA50 (38)
MOTOR WINDING CA24 - CA50 (38) Ref: CA24-15
Number: 27 (B)
Quadrants: 2B
COMPRESSOR SEAL 16X28X7 CA24 - CA50 (39)
COMPRESSOR SEAL 16X28X7 CA24 - CA50 (39) Ref: CA24-16
Number: 28 (B)
Quadrants: 2B
MOTOR ROTOR CA24 - CA50 (41)
MOTOR ROTOR CA24 - CA50 (41) Ref: CA24-17
Number: 31 (B)
Quadrants: 2B
PRESSURE RING CA24 - CA50 (43)
PRESSURE RING CA24 - CA50 (43) Ref: CA24-18
Number: 32 (B)
Quadrants: 2C
RUBBER HANDLE CA24 - CA50 (44)
RUBBER HANDLE CA24 - CA50 (44) Ref: CA24-19
Number: 15 (A)
Quadrants: 2B
MOTOR BRACKET CA24 - CA50 (46)
MOTOR BRACKET CA24 - CA50 (46) Ref: CA24-20
Number: 37 (B)
Quadrants: 2C
FAN CA24 - CA50 (47)
FAN CA24 - CA50 (47) Ref: CA24-21
Number: 38 (B)
Quadrants: 1C, 2C
QUICK PLUG CA24 - CA50 (52)
QUICK PLUG CA24 - CA50 (52) Ref: CA24-22
Number: 23 (A)
Quadrants: 1C, 2C
COMPRESSOR PRESSURE REGULATOR CA24 - CA50 (53)
COMPRESSOR PRESSURE REGULATOR CA24 - CA50 (53) Ref: CA24-23
Number: 21 (A)
Quadrants: 2C
SMALL PRESSURE GAUGE COMPRESSOR CA24 - CA50 (54)
SMALL PRESSURE GAUGE COMPRESSOR CA24 - CA50 (54) Ref: CA24-24
Number: 20 (A)
Quadrants: 2C
COMPRESSOR CONNECTION FITTING CA24 - CA50 (55)
COMPRESSOR CONNECTION FITTING CA24 - CA50 (55) Ref: CA24-25
Number: 19 (A)
Quadrants: 2B, 2C
DRAIN VALVE CA06 - CA24 - CA50 (56)
DRAIN VALVE CA06 - CA24 - CA50 (56) Ref: CA24-26
Number: 16 (A)
Quadrants: 2B
LARGE PRESSURE GAUGE COMPRESSOR CA24 - CA50 (57)
LARGE PRESSURE GAUGE COMPRESSOR CA24 - CA50 (57) Ref: CA24-27
Number: 18 (A)
Quadrants: 2B, 2C
COMPRESSOR RETURN VALVE CA24 - CA50 (61)
COMPRESSOR RETURN VALVE CA24 - CA50 (61) Ref: CA24-28
Number: 12 (A)
Quadrants: 2B
RUBBER SUPPORT CA24 - CA50 (63)
RUBBER SUPPORT CA24 - CA50 (63) Ref: CA24-29
Number: 9 (A)
Quadrants: 3B
TRANSPORT WHEEL CA24 (68)
TRANSPORT WHEEL CA24 (68) Ref: CA24-30
Number: 2 (A)
Quadrants: 3B
TANK DRAIN PLUG CA24 - CA50 (70)
TANK DRAIN PLUG CA24 - CA50 (70) Ref: CA24-31
Number: 5 (A)
Quadrants: 3B
LONG ALUMINIUM TUBE CA24 (30)
LONG ALUMINIUM TUBE CA24 (30) Ref: CA24-32
Number: 27, 28, 29, 30 (A)
Quadrants: 2A
SWITCH CA24, CA50
SWITCH CA24, CA50 Ref: CA24-34
Number: 17 (A)
Quadrants: 2B
ENGINE COVER CA24 - CA50 (50)
ENGINE COVER CA24 - CA50 (50) Ref: CA24-35
Number: 24 (A)
Quadrants: 1C
COMPLETE AIR FILTER CA24 - CA50 (24) THREAD 20MM
COMPLETE AIR FILTER CA24 - CA50 (24) THREAD 20MM Ref: CA24-36
Number: 32 (A)
Quadrants: 1A
ENGINE COVER CA24 - CA50 (24) (2HP - 2019)
ENGINE COVER CA24 - CA50 (24) (2HP - 2019) Ref: CA24-37
Number: 24 (A)
Quadrants: 1C
SCREW WHEEL CA24 - CA50 ( 1 + 4) (2HP - 2019)
SCREW WHEEL CA24 - CA50 ( 1 + 4) (2HP - 2019) Ref: CA24-38
Number: 1, 3, 4 (A)
Quadrants: 3B
COMPRESSOR HEAD COVER CA24 (22) (2HP - 2019)
COMPRESSOR HEAD COVER CA24 (22) (2HP - 2019) Ref: CA24-39
Number: 22 (A)
Quadrants: 1B
TRANSPORT WHEEL CA24 (2019) (2)
TRANSPORT WHEEL CA24 (2019) (2) Ref: CA24-40
Number: 2 (A)
Quadrants: 3B
SIDE COVER CRANKCASE PUMP CA24, CA50 (5) (2HP - 2019)
SIDE COVER CRANKCASE PUMP CA24, CA50 (5) (2HP - 2019) Ref: CA24-41
Number: 5 (B)
Quadrants: 3A
SIDE COVER CRANKCASE PUMP CA24, CA50 (5) (2HP - 2019)
SIDE COVER CRANKCASE PUMP CA24, CA50 (5) (2HP - 2019) Ref: CA24-42
Number: 7 (B)
Quadrants: 2A, 3A
CRANKSHAFT PUMP CA24, CA50 (9) (2HP - 2019)
CRANKSHAFT PUMP CA24, CA50 (9) (2HP - 2019) Ref: CA24-43
Number: 9 (B)
Quadrants: 2A
PISTON CLAMP PUMP COMPRESSOR CA100 (26)
PISTON CLAMP PUMP COMPRESSOR CA100 (26) Ref: CA24-44
Number: 11 (B)
Quadrants: 2A
COMPRESSOR CYLINDER CA24 - CA50 (18)
COMPRESSOR CYLINDER CA24 - CA50 (18) Ref: CA24-45
Number: 15 (B)
Quadrants: 2B
CYLINDER SEAL COMPRESSOR PUMP CYLINDER CA100 (10)
CYLINDER SEAL COMPRESSOR PUMP CYLINDER CA100 (10) Ref: CA24-46
Number: 16 (B)
Quadrants: 2B
PUMP CYLINDER SEAL CA24, CA50 (16) (2HP - 2019)
PUMP CYLINDER SEAL CA24, CA50 (16) (2HP - 2019) Ref: CA24-47
Number: 19 (B)
Quadrants: 1A, 1B
PUMP PLATE VALVE CA24, CA50 (18) (2HP - 2019)
PUMP PLATE VALVE CA24, CA50 (18) (2HP - 2019) Ref: CA24-48
Number: 18 (B)
Quadrants: 1B, 2B
PUMP VALVE CA24, CA50 (18) (2HP - 2019)
PUMP VALVE CA24, CA50 (18) (2HP - 2019) Ref: CA24-49
Number: - (B)
Quadrants: 2B
PUMP CYLINDER SEAL CA24, CA50 (16) (2HP - 2019)
PUMP CYLINDER SEAL CA24, CA50 (16) (2HP - 2019) Ref: CA24-50
Number: 20 (A)
Quadrants: 1B
PUMP HEAD GASKET CA24, CA50 (20) (2HP - 2019)
PUMP HEAD GASKET CA24, CA50 (20) (2HP - 2019) Ref: CA24-51
Number: 23 (B)
Quadrants: 2B
MOTOR WINDING CA24 - CA50 (38)
MOTOR WINDING CA24 - CA50 (38) Ref: CA24-52
Number: 27 (B)
Quadrants: 2B
OIL SEAL PUMP 20X40X5 CA24, CA50 (27)
OIL SEAL PUMP 20X40X5 CA24, CA50 (27) Ref: CA24-54
Number: 29 (B)
Quadrants: 2B
MOTOR ROTOR CA24 - CA50 (41)
MOTOR ROTOR CA24 - CA50 (41) Ref: CA24-55
Number: 31 (B)
Quadrants: 2B
PUMP SIDE MOTOR BEARING 6204RZ CA24, CA50 (29) (2HP - 2019)
PUMP SIDE MOTOR BEARING 6204RZ CA24, CA50 (29) (2HP - 2019) Ref: CA24-56
Number: 32 (B)
Quadrants: 2C
PISTON CLAMP PUMP COMPRESSOR CA24, CA50 (11) (2HP - 2019)
PISTON CLAMP PUMP COMPRESSOR CA24, CA50 (11) (2HP - 2019) Ref: CA24-57
Number: 39 (B)
Quadrants: 1C
PLUG AND CABLE COMPRESSOR CA100 (16)
PLUG AND CABLE COMPRESSOR CA100 (16) Ref: CA24-58
Number: 11 (A)
Quadrants: 2B
SHORT ALUMINIUM TUBE CA24 (59)
SHORT ALUMINIUM TUBE CA24 (59) Ref: CA24-59
Number: 13, 14 (A)
Quadrants: 2B
COMPLETE ENGINE WITH PUMP CA24, CA50 (31) (2HP - 2019)
COMPLETE ENGINE WITH PUMP CA24, CA50 (31) (2HP - 2019) Ref: CA24-60
Number: 31 (A)
Quadrants: 1A, 2A
SHORT ALUMINIUM TUBE CA24 (13-14) (2HP - 2019)
SHORT ALUMINIUM TUBE CA24 (13-14) (2HP - 2019) Ref: CA24-61
Number: 27, 28, 29, 30 (A)
Quadrants: 2A
CONNECTING ROD COMPRESSOR CA24 - CA50 (9) (2HP - 2019)
CONNECTING ROD COMPRESSOR CA24 - CA50 (9) (2HP - 2019) Ref: CA24-62
Number: 10 (B)
Quadrants: 2A
UNIVERSAL IGNITION SWITCH COMPRESSOR - 1 INPUT
UNIVERSAL IGNITION SWITCH COMPRESSOR - 1 INPUT Ref: CA24-80
Number: 17 (A)
Quadrants: 2B

Download exploded view

Despiece CA24 2018 Motor Despiece CA24 2018 Compresor Despiece CA24 2016
