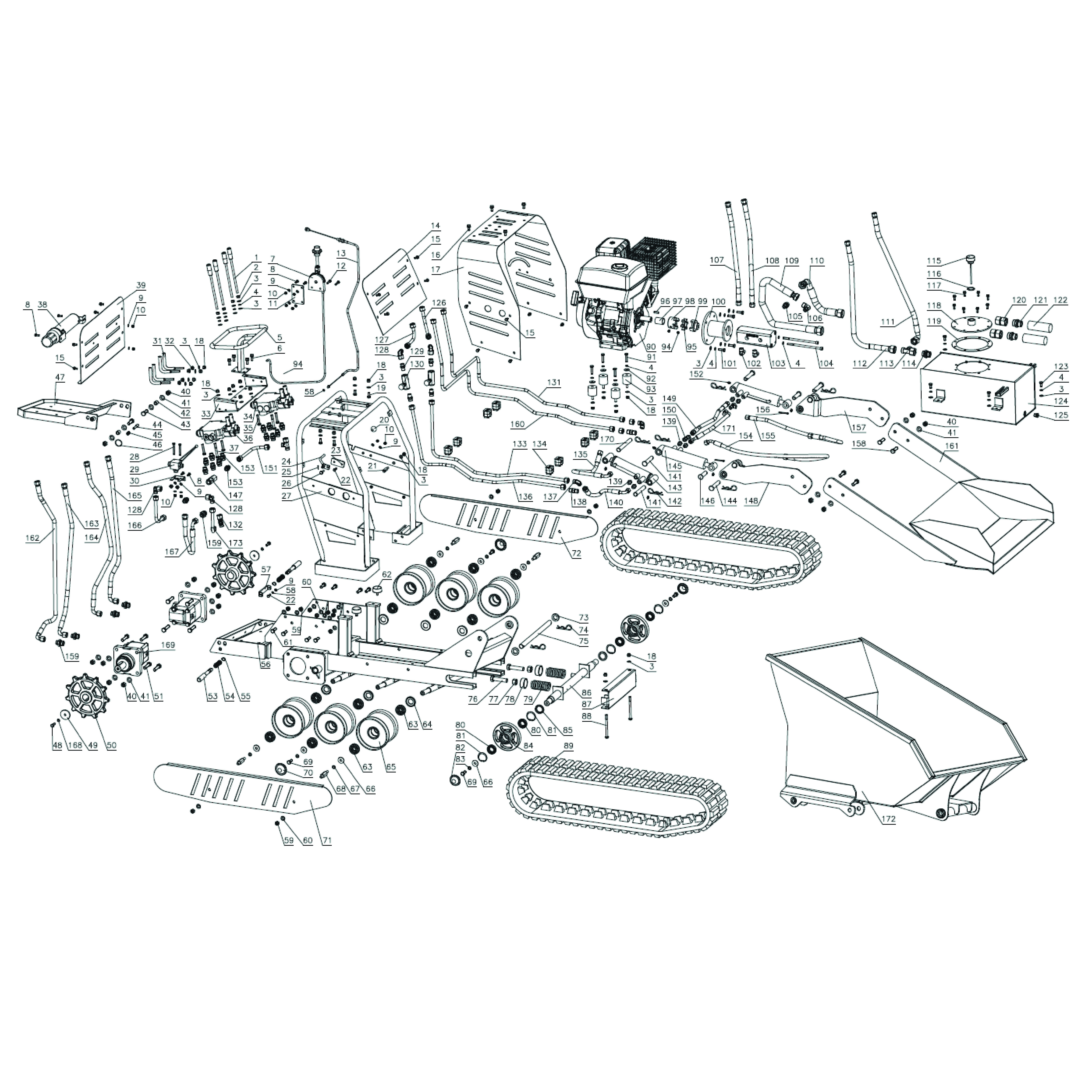

Exploded view OR9500

[OR9500] TRACKED CONSTRUCTION FORKLIFT 9HP 500KG ANOVA - WITH LOADING SHOVEL

Instructions

Select a quadrant on the exploded view to display the parts in that area. You can zoom into the exploded view.

Ref: OR9500 - TRACKED CONSTRUCTION FORKLIFT 9HP 500KG ANOVA - WITH LOADING SHOVEL

See the pieces
A
B
C
1
2
3

Parte A

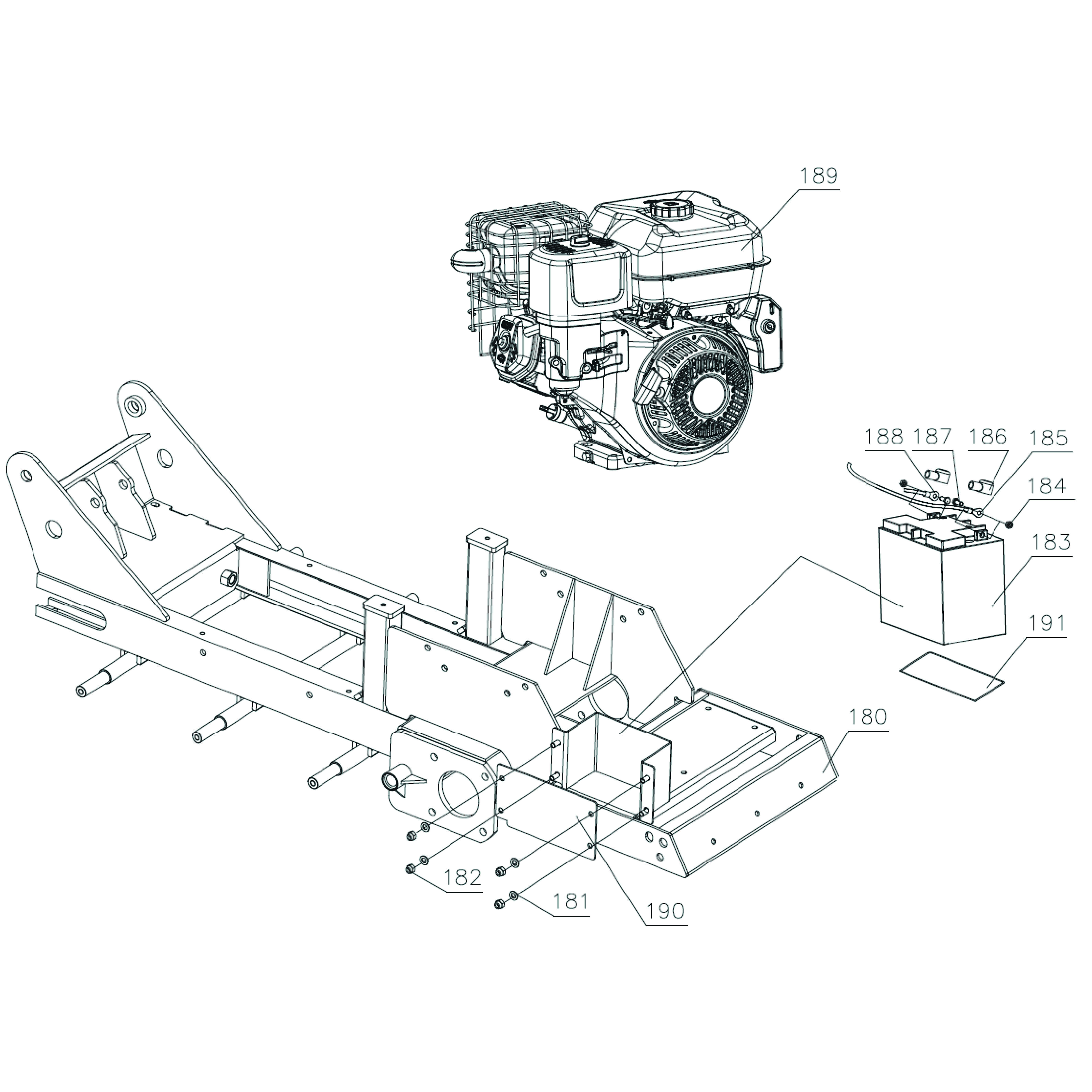

Parte B
PALANCA ACCIONAMIENTO (1)
PALANCA ACCIONAMIENTO (1) Ref: OR9500-001
Number: 1 (A)
Quadrants: 1A
MANILLAR (5)
MANILLAR (5) Ref: OR9500-002
Number: 5 (A)
Quadrants: 1A
MANDO ACELERADOR (7)
MANDO ACELERADOR (7) Ref: OR9500-003
Number: 7 (A)
Quadrants: 1A
CABLE FRENO (13)
CABLE FRENO (13) Ref: OR9500-004
Number: 13 (A)
Quadrants: 1A
PROTECTOR FRONTAL (39)
PROTECTOR FRONTAL (39) Ref: OR9500-005
Number: 39 (A)
Quadrants: 1A
PROTECTOR SUPERIOR Y LATERAL (17)
PROTECTOR SUPERIOR Y LATERAL (17) Ref: OR9500-006
Number: 17 (A)
Quadrants: 1B
PALANCA FRENO (24)
PALANCA FRENO (24) Ref: OR9500-007
Number: 24 (A)
Quadrants: 2A
CUERPO SUPERIOR (27)
CUERPO SUPERIOR (27) Ref: OR9500-008
Number: 27 (A)
Quadrants: 2A, 2B
VALVULA DE CONTROL (29)
VALVULA DE CONTROL (29) Ref: OR9500-009
Number: 29 (A)
Quadrants: 2A
ENGANCHE PALANCA DISTRIBUIDOR (31)
ENGANCHE PALANCA DISTRIBUIDOR (31) Ref: OR9500-010
Number: 31 (A)
Quadrants: 2A
PLACA SOPORTE DISTRIBUIDORES (33)
PLACA SOPORTE DISTRIBUIDORES (33) Ref: OR9500-011
Number: 33 (A)
Quadrants: 2A
DISTRIBUIDOR 1 (34)
DISTRIBUIDOR 1 (34) Ref: OR9500-012
Number: 34 (A)
Quadrants: 2A
DISTRIBUIDOR 2 (36)
DISTRIBUIDOR 2 (36) Ref: OR9500-013
Number: 36 (A)
Quadrants: 2A
PORTA DOCUMENTOS (38)
PORTA DOCUMENTOS (38) Ref: OR9500-014
Number: 38 (A)
Quadrants: 1A
CHAPA PROTECCION TRASERA (14)
CHAPA PROTECCION TRASERA (14) Ref: OR9500-015
Number: 14 (A)
Quadrants: 1B
PASADOR GIRATORIO (44)
PASADOR GIRATORIO (44) Ref: OR9500-016
Number: 44 (A)
Quadrants: 2A
MUELLE PASADOR GIRATORIO (45)
MUELLE PASADOR GIRATORIO (45) Ref: OR9500-017
Number: 45 (A)
Quadrants: 2A
ANILLO DE TRACCION (46)
ANILLO DE TRACCION (46) Ref: OR9500-018
Number: 46 (A)
Quadrants: 2A
PLATAFORMA DE CONDUCCION (47)
PLATAFORMA DE CONDUCCION (47) Ref: OR9500-019
Number: 47 (A)
Quadrants: 2A
PASADOR ESTACIONAMIENTO (53-54-55)
PASADOR ESTACIONAMIENTO (53-54-55) Ref: OR9500-020
Number: 53, 54, 55 (A)
Quadrants: 2A
CHASSIS (56)
CHASSIS (56) Ref: OR9500-021
Number: 56 (A)
Quadrants: 2A, 2B
CONECTOR PASADOR ESTACIONAMIENTO (57)
CONECTOR PASADOR ESTACIONAMIENTO (57) Ref: OR9500-022
Number: 57 (A)
Quadrants: 2A
AMORTIGUADOR DE APOYO (62)
AMORTIGUADOR DE APOYO (62) Ref: OR9500-023
Number: 62 (A)
Quadrants: 2B
RETEN RODILLO GUIA (64)
RETEN RODILLO GUIA (64) Ref: OR9500-024
Number: 64 (A)
Quadrants: 2B
RODILLO GUIA (65)
RODILLO GUIA (65) Ref: OR9500-025
Number: 65 (A)
Quadrants: 2A, 2B, 3A, 3B
PERNO RODILLO GUIA (68)
PERNO RODILLO GUIA (68) Ref: OR9500-026
Number: 68 (A)
Quadrants: 3A
TAPA PERNO RODILLO GUIA (70)
TAPA PERNO RODILLO GUIA (70) Ref: OR9500-027
Number: 70 (A)
Quadrants: 3A
TAPA PROTECCION IZQUIERDA (72)
TAPA PROTECCION IZQUIERDA (72) Ref: OR9500-028
Number: 72 (A)
Quadrants: 2B
TAPA PROTECTORA DERECHA (71)
TAPA PROTECTORA DERECHA (71) Ref: OR9500-029
Number: 71 (A)
Quadrants: 3A
EJE PIVOTE TENSOR (75)
EJE PIVOTE TENSOR (75) Ref: OR9500-030
Number: 75 (A)
Quadrants: 2B
APOYO MUELLE TENSOR(78)
APOYO MUELLE TENSOR(78) Ref: OR9500-031
Number: 78 (A)
Quadrants: 2B
MUELLE TENSOR (79)
MUELLE TENSOR (79) Ref: OR9500-032
Number: 79 (A)
Quadrants: 2B
TAPA RUEDA GUIA (82)
TAPA RUEDA GUIA (82) Ref: OR9500-033
Number: 82 (A)
Quadrants: 3B
RUEDA GUIA (84)
RUEDA GUIA (84) Ref: OR9500-034
Number: 84 (A)
Quadrants: 2B, 3B
EJE RUEDA GUIA (86)
EJE RUEDA GUIA (86) Ref: OR9500-035
Number: 86 (A)
Quadrants: 2B
TAPA FRONTAL (87)
TAPA FRONTAL (87) Ref: OR9500-036
Number: 87 (A)
Quadrants: 2B
ORUGA (89)
ORUGA (89) Ref: OR9500-037
Number: 89 (A)
Quadrants: 2B, 2C, 3B
AMORTIGUADOR APOYO MOTOR (93)
AMORTIGUADOR APOYO MOTOR (93) Ref: OR9500-039
Number: 93 (A)
Quadrants: 2B
JUNTA ACOPLE (95)
JUNTA ACOPLE (95) Ref: OR9500-040
Number: 95 (A)
Quadrants: 1B
ESPACIADOR (97)
ESPACIADOR (97) Ref: OR9500-041
Number: 97 (A)
Quadrants: 1B
ACOPLE DERECHO (98)
ACOPLE DERECHO (98) Ref: OR9500-042
Number: 98 (A)
Quadrants: 1B
ACOPLE IZQUIERDO (99)
ACOPLE IZQUIERDO (99) Ref: OR9500-043
Number: 99 (A)
Quadrants: 1B
BRIDA CONEXIÓN (100)
BRIDA CONEXIÓN (100) Ref: OR9500-044
Number: 100 (A)
Quadrants: 1B
CONECTOR SALIDA BOMBA (102)
CONECTOR SALIDA BOMBA (102) Ref: OR9500-045
Number: 102 (A)
Quadrants: 1C
BOMBA HIDRAULICA (103
BOMBA HIDRAULICA (103 Ref: OR9500-046
Number: 103 (A)
Quadrants: 1C
CONECTOR RECTO ENTRADA BOMBA (105)
CONECTOR RECTO ENTRADA BOMBA (105) Ref: OR9500-047
Number: 105 (A)
Quadrants: 1C
CONECTOR ACODADO ENTRADA BOMBA (106)
CONECTOR ACODADO ENTRADA BOMBA (106) Ref: OR9500-048
Number: 106 (A)
Quadrants: 1C
LATIGUILLO CORTO SALIDA BOMBA (107)
LATIGUILLO CORTO SALIDA BOMBA (107) Ref: OR9500-049
Number: 107 (A)
Quadrants: 1C
LATIGUILLO LARGO SALIDA BOMBA (108)
LATIGUILLO LARGO SALIDA BOMBA (108) Ref: OR9500-050
Number: 108 (A)
Quadrants: 1C
LATIGUILLO CORTO SUCCION ACEITE (110)
LATIGUILLO CORTO SUCCION ACEITE (110) Ref: OR9500-051
Number: 110 (A)
Quadrants: 1C
LATIGUILLO CORTO RETORNO ACEITE (111)
LATIGUILLO CORTO RETORNO ACEITE (111) Ref: OR9500-052
Number: 111 (A)
Quadrants: 1C
LATIGUILLO LARGO RETORNO ACEITE (112)
LATIGUILLO LARGO RETORNO ACEITE (112) Ref: OR9500-053
Number: 112 (A)
Quadrants: 1C
CONECTOR EN T (113)
CONECTOR EN T (113) Ref: OR9500-054
Number: 113 (A)
Quadrants: 1C
CONECTOR RETORNO ACEITE (114)
CONECTOR RETORNO ACEITE (114) Ref: OR9500-055
Number: 114 (A)
Quadrants: 1C
VARILLA ACEITE (115-116)
VARILLA ACEITE (115-116) Ref: OR9500-056
Number: 115, 116 (A)
Quadrants: 1C
CUBIERTA TANQUE (118)
CUBIERTA TANQUE (118) Ref: OR9500-057
Number: 118 (A)
Quadrants: 1C
JUNTA CUBIERTA TANQUE (119)
JUNTA CUBIERTA TANQUE (119) Ref: OR9500-058
Number: 119 (A)
Quadrants: 1C
UNION FILTRO ACEITE (120)
UNION FILTRO ACEITE (120) Ref: OR9500-059
Number: 120 (A)
Quadrants: 1C
CONECTOR FILTRO ACEITE (121)
CONECTOR FILTRO ACEITE (121) Ref: OR9500-060
Number: 121 (A)
Quadrants: 1C
FILTRO ACEITE (122)
FILTRO ACEITE (122) Ref: OR9500-061
Number: 122 (A)
Quadrants: 1C
DEPOSITO ACEITE (124)
DEPOSITO ACEITE (124) Ref: OR9500-062
Number: 124 (A)
Quadrants: 2C
TUBO RETORNO ACEITE BASCULANTE (126)
TUBO RETORNO ACEITE BASCULANTE (126) Ref: OR9500-063
Number: 126 (A)
Quadrants: 1B
TUBO RETORNO ACEIITE PALA (127)
TUBO RETORNO ACEIITE PALA (127) Ref: OR9500-064
Number: 127 (A)
Quadrants: 1B
CONECTOR VALVULA ACCONAMIENTO (129)
CONECTOR VALVULA ACCONAMIENTO (129) Ref: OR9500-065
Number: 129 (A)
Quadrants: 2B
VALVULA DE MARIPOSA UNIDERECCIONAL (130)
VALVULA DE MARIPOSA UNIDERECCIONAL (130) Ref: OR9500-066
Number: 130 (A)
Quadrants: 2B
TUBO ENTRADA ACEITE BASCULANTE (131)
TUBO ENTRADA ACEITE BASCULANTE (131) Ref: OR9500-067
Number: 131 (A)
Quadrants: 1B, 2B
CONECTOR T M18X1,5 (132)
CONECTOR T M18X1,5 (132) Ref: OR9500-068
Number: 132 (A)
Quadrants: 2A
TUBO RETORNO ACEITE BASCULANTE (133)
TUBO RETORNO ACEITE BASCULANTE (133) Ref: OR9500-069
Number: 133 (A)
Quadrants: 2B
ABRAZADERA MANGUITO (134)
ABRAZADERA MANGUITO (134) Ref: OR9500-070
Number: 134 (A)
Quadrants: 2B
LATIGUILLO ENTRADA ACEITE CILINDRO BASCULANTE (135)
LATIGUILLO ENTRADA ACEITE CILINDRO BASCULANTE (135) Ref: OR9500-071
Number: 135 (A)
Quadrants: 2B
TUBO RETORNO ACEITE PALA (136)
TUBO RETORNO ACEITE PALA (136) Ref: OR9500-072
Number: 136 (A)
Quadrants: 2B
CONECTOR ACODADO (137)
CONECTOR ACODADO (137) Ref: OR9500-073
Number: 137 (A)
Quadrants: 2B
CONECTOR RECTO (138)
CONECTOR RECTO (138) Ref: OR9500-074
Number: 138 (A)
Quadrants: 2B
CONECTOR CILINDRO HIDRAULICO (139)
CONECTOR CILINDRO HIDRAULICO (139) Ref: OR9500-075
Number: 139 (A)
Quadrants: 2B
LATIGUILLO SALIDA ACEITE CILINDRO BASCULANTE (140)
LATIGUILLO SALIDA ACEITE CILINDRO BASCULANTE (140) Ref: OR9500-076
Number: 140 (A)
Quadrants: 2B
PASADOR 16X100 (141)
PASADOR 16X100 (141) Ref: OR9500-077
Number: 141 (A)
Quadrants: 2B
CILINDRO BASCULANTE (143)
CILINDRO BASCULANTE (143) Ref: OR9500-078
Number: 143 (A)
Quadrants: 2B
PASADOR 16X80 (144)
PASADOR 16X80 (144) Ref: OR9500-079
Number: 144 (A)
Quadrants: 2B
CILINDRO PALA (145)
CILINDRO PALA (145) Ref: OR9500-080
Number: 145 (A)
Quadrants: 2B
PASADOR 16X60 (146)
PASADOR 16X60 (146) Ref: OR9500-081
Number: 146 (A)
Quadrants: 2B
BIELA IZQUIERDA (148)
BIELA IZQUIERDA (148) Ref: OR9500-082
Number: 148 (A)
Quadrants: 2C
CONECTOR T M14X1,5 (150)
CONECTOR T M14X1,5 (150) Ref: OR9500-083
Number: 150 (A)
Quadrants: 2B
TUBO ENTRADA DISTRIBUIDOR (151)
TUBO ENTRADA DISTRIBUIDOR (151) Ref: OR9500-084
Number: 151 (A)
Quadrants: 2A
ENGRASADOR M6 (152)
ENGRASADOR M6 (152) Ref: OR9500-085
Number: 152 (A)
Quadrants: 2B
CONECTOR VALVULA MULTIDIRECCIONAL (153)
CONECTOR VALVULA MULTIDIRECCIONAL (153) Ref: OR9500-086
Number: 153 (A)
Quadrants: 2A
LATIGUILLO ENTRADA ACEITE PALA (154)
LATIGUILLO ENTRADA ACEITE PALA (154) Ref: OR9500-087
Number: 154 (A)
Quadrants: 2C
LATIGUILLO SALIDA ACEITE PALA (155)
LATIGUILLO SALIDA ACEITE PALA (155) Ref: OR9500-088
Number: 155 (A)
Quadrants: 2C
BIELA DERECHA (157)
BIELA DERECHA (157) Ref: OR9500-089
Number: 157 (A)
Quadrants: 2C
CONECTOR VALVULA CONTROL (159)
CONECTOR VALVULA CONTROL (159) Ref: OR9500-090
Number: 159 (A)
Quadrants: 2A
TUBO ENTRADA ACEITE PALA (160)
TUBO ENTRADA ACEITE PALA (160) Ref: OR9500-091
Number: 160 (A)
Quadrants: 2B
PALA CARGA (161)
PALA CARGA (161) Ref: OR9500-092
Number: 161 (A)
Quadrants: 2C
LATIGUILLO 4 MOTOR HIDRULICO (162)
LATIGUILLO 4 MOTOR HIDRULICO (162) Ref: OR9500-093
Number: 162 (A)
Quadrants: 2A
LATIGUILLO 3 MOTOR HIDRAULICO (163)
LATIGUILLO 3 MOTOR HIDRAULICO (163) Ref: OR9500-094
Number: 163(A)
Quadrants: 2A
LATIGUILLO 2 MOTOR HIDRAULICO (164)
LATIGUILLO 2 MOTOR HIDRAULICO (164) Ref: OR9500-095
Number: 164 (A)
Quadrants: 2A
LATIGUILLO 1 MOTOR HIDRAULICO (165)
LATIGUILLO 1 MOTOR HIDRAULICO (165) Ref: OR9500-096
Number: 165 (A)
Quadrants: 1A
TUBO ENTRADA ACEITE VALVULA CONTROL (166)
TUBO ENTRADA ACEITE VALVULA CONTROL (166) Ref: OR9500-097
Number: 166 (A)
Quadrants: 2A
LATIGUILLO CONEXIÓN (167)
LATIGUILLO CONEXIÓN (167) Ref: OR9500-098
Number: 167 (A)
Quadrants: 2A
MOTOR HIDRAULICO (169)
MOTOR HIDRAULICO (169) Ref: OR9500-099
Number: 169 (A)
Quadrants: 2A
PASADOR 16X140 (170)
PASADOR 16X140 (170) Ref: OR9500-100
Number: 170 (A)
Quadrants: 2B
LATIGUILLO CONEXIÓN PALA (171)
LATIGUILLO CONEXIÓN PALA (171) Ref: OR9500-101
Number: 171 (A)
Quadrants: 2B
VOLQUETE
VOLQUETE Ref: OR9500-102
Number: 172 (A)
Quadrants: 2C, 3C
TORNILLO +TUERCA VOLQUETE M16X90 OR9500 (76-77)
TORNILLO +TUERCA VOLQUETE M16X90 OR9500 (76-77) Ref: OR9500-103
Number: 76, 77 (A)
Quadrants: 2B
CASQUILLO TORNILLO VOLQUETE OR9500 (42)
CASQUILLO TORNILLO VOLQUETE OR9500 (42) Ref: OR9500-104
Number: 42 (A)
Quadrants: 2A
ACOPLE COMPLETO OR9500 A PARTIR 2025
ACOPLE COMPLETO OR9500 A PARTIR 2025 Ref: OR9500-105
Number: 95, 98, 99 (A)
Quadrants: 1B
BRIDA CONEXION OR9500 A PARTIR 2025
BRIDA CONEXION OR9500 A PARTIR 2025 Ref: OR9500-106
Number: 100 (A)
Quadrants: 1B
MOTOR G270F-9HP
MOTOR G270F-9HP Ref: OR9500-MOTOR
Number: 189 (B)
Quadrants: 1B, 1C, 2B, 2C

Download exploded view

Despiece OR9500
