Exploded view MA173E

[MA173E] MOTOR CORTACESPED 6HP 3.6kW 173cc - ARRANQUE ELECTRICO

Instructions

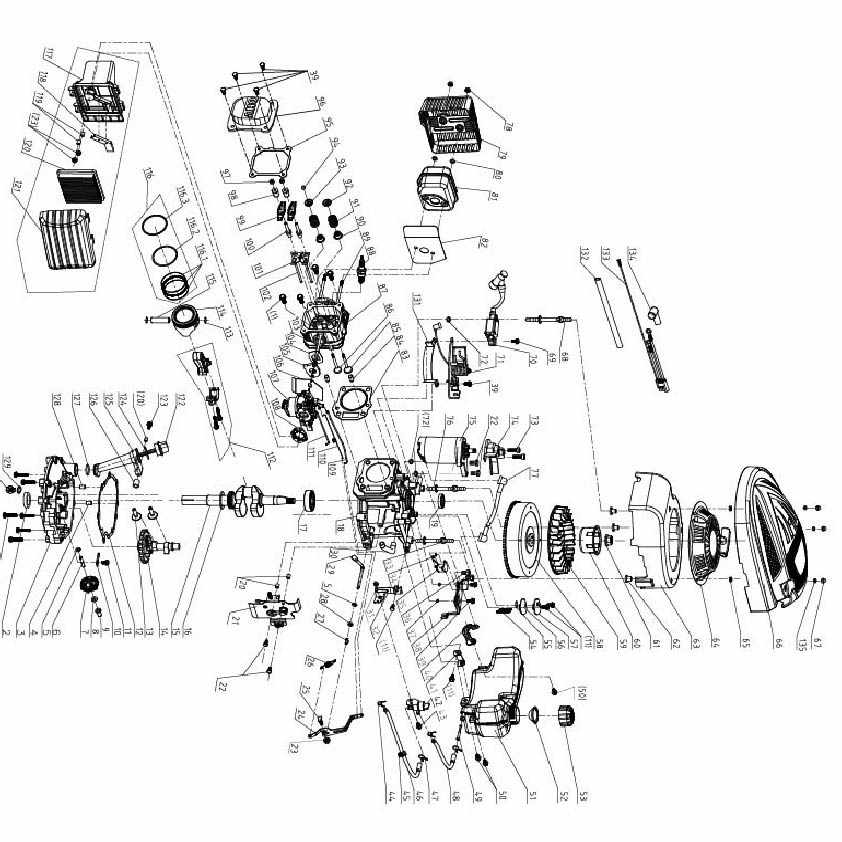

Select a quadrant on the exploded view to display the parts in that area. You can zoom into the exploded view.

Ref: MA173E - 5HP 3.6kW 173cc ELECTRIC STARTER 5HP 3.6kW CUTTING ENGINE - ELECTRIC STARTER

See the pieces
A
B
C
1
2
3

Parte A
INTERNAL SPEED CONTROLLER MA173E (7) - CC251TE
INTERNAL SPEED CONTROLLER MA173E (7) - CC251TE Ref: MA173E-001
Number: 7 (A)
Quadrants: 3C
CAMSHAFT MA173E (14) - CC251TE
CAMSHAFT MA173E (14) - CC251TE Ref: MA173E-002
Number: 14 (A)
Quadrants: 3B
UPPER CRANKSHAFT BEARING MA173E (17), CC251TE
UPPER CRANKSHAFT BEARING MA173E (17), CC251TE Ref: MA173E-003
Number: 17 (A)
Quadrants: 2B
FUEL FILLER CAP MA173E (52-53), CC251TE
FUEL FILLER CAP MA173E (52-53), CC251TE Ref: MA173E-004
Number: 52, 53 (A)
Quadrants: 1C, 2C
MAGNETIC FLYWHEEL MA173E (57), CC251TE
MAGNETIC FLYWHEEL MA173E (57), CC251TE Ref: MA173E-005
Number: 58 (A)
Quadrants: 2B
STARTER MOTOR MA173E (75-76), CC251TE
STARTER MOTOR MA173E (75-76), CC251TE Ref: MA173E-006
Number: 75, 76 (A)
Quadrants: 2B
EXHAUST PROTECTOR MA173E (79), CC251TE
EXHAUST PROTECTOR MA173E (79), CC251TE Ref: MA173E-007
Number: 79 (A)
Quadrants: 2A
EXHAUST MA173E (81), CC251TE
EXHAUST MA173E (81), CC251TE Ref: MA173E-008
Number: 81 (A)
Quadrants: 2A
EXHAUST GASKET MA173E (82), CC251TE
EXHAUST GASKET MA173E (82), CC251TE Ref: MA173E-009
Number: 82 (A)
Quadrants: 2A
ROCKER SET MA173E (98-100)
ROCKER SET MA173E (98-100) Ref: MA173E-010
Number: 98, 99, 100 (A)
Quadrants: 2A, 3A
CARBURETTOR-FLANGE GASKET MA173E (106), CC251TE
CARBURETTOR-FLANGE GASKET MA173E (106), CC251TE Ref: MA173E-011
Number: 106 (A)
Quadrants: 2B
CONNECTING ROD MA173E (112), CC251TE
CONNECTING ROD MA173E (112), CC251TE Ref: MA173E-012
Number: 112 (A)
Quadrants: 3B
PISTON PIN MA173E (113), CC251T
PISTON PIN MA173E (113), CC251T Ref: MA173E-013
Number: 113 (A)
Quadrants: 3B
PISTON MA173E (114), C251TE
PISTON MA173E (114), C251TE Ref: MA173E-014
Number: 114 (A)
Quadrants: 3B
PISTON PIN MA173E (115)
PISTON PIN MA173E (115) Ref: MA173E-015
Number: 115 (A)
Quadrants: 3B
SET OF RINGS MA173E (116), CC251TE
SET OF RINGS MA173E (116), CC251TE Ref: MA173E-016
Number: 116 (A)
Quadrants: 3A, 3B
COMPLETE OIL SHIM MA173E (122-128)
COMPLETE OIL SHIM MA173E (122-128) Ref: MA173E-017
Number: 122-128 (A)
Quadrants: 3B
CARBURETOR MA173E (107)
CARBURETOR MA173E (107) Ref: MA173E-018
Number: 107 (A)
Quadrants: 2B
PETROL WRENCH MA173E (42), CC251TE
PETROL WRENCH MA173E (42), CC251TE Ref: MA173E-019
Number: 42 (A)
Quadrants: 2C
SOLENOID MA173E (35) - CC251TE
SOLENOID MA173E (35) - CC251TE Ref: MA173E-020
Number: 35 (A)
Quadrants: 2C
FLYWHEEL COVER MA173E (63) - CC251TE
FLYWHEEL COVER MA173E (63) - CC251TE Ref: MA173E-021
Number: 63 (A)
Quadrants: 1B, 1C
MOTOR BRAKE ASSEMBLY MA173E (71) - CC251TE
MOTOR BRAKE ASSEMBLY MA173E (71) - CC251TE Ref: MA173E-022
Number: 71 (A)
Quadrants: 2B
BATTERY CABLE MA173E (77) - CC251TE
BATTERY CABLE MA173E (77) - CC251TE Ref: MA173E-023
Number: 77 (A)
Quadrants: 2B
SHEET METAL MA173E (131) - CC251TE
SHEET METAL MA173E (131) - CC251TE Ref: MA173E-024
Number: 131 (A)
Quadrants: 2B
PROTECTIVE TUBE COIL CABLE PROTECTOR MA173E (132) - CC251TE
PROTECTIVE TUBE COIL CABLE PROTECTOR MA173E (132) - CC251TE Ref: MA173E-025
Number: 132 (A)
Quadrants: 1B
SOLENOID ACTIVATION CABLE MA173E (133) - CC251TE
SOLENOID ACTIVATION CABLE MA173E (133) - CC251TE Ref: MA173E-026
Number: 133 (A)
Quadrants: 1B
SPARK PLUG CAP MA173E (134) - CC251TE
SPARK PLUG CAP MA173E (134) - CC251TE Ref: MA173E-027
Number: 134 (A)
Quadrants: 1B
CRANKSHAFT SEAL 25X38X7 MA135 - CC246 - CC246T (34)
CRANKSHAFT SEAL 25X38X7 MA135 - CC246 - CC246T (34) Ref: MA135-015
Number: 17 (A)
Quadrants: 2B
START-UP MA135 (70), MA173 (63), MA173E (64), CC246, CC246T, CC251TE
START-UP MA135 (70), MA173 (63), MA173E (64), CC246, CC246T, CC251TE Ref: MA135-026
Number: 64 (A)
Quadrants: 1B
VALVE COVER GASKET MA135 - CC246 - CC246T (106) - MA173 (92)
VALVE COVER GASKET MA135 - CC246 - CC246T (106) - MA173 (92) Ref: MA135-047
Number: 95 (A)
Quadrants: 3A
INTAKE FLANGE MA135 - CC246 - CC246T (109) - MA173 (101)
INTAKE FLANGE MA135 - CC246 - CC246T (109) - MA173 (101) Ref: MA135-049
Number: 105 (A)
Quadrants: 2B
CRANKSHAFT MA173 - CC251 - CC256 - CC351T3 (16)
CRANKSHAFT MA173 - CC251 - CC256 - CC351T3 (16) Ref: MA173-001
Number: 15 (A)
Quadrants: 3B
CRANKSHAFT SEAL 25X40X7 MA173 - CC251 - CC256 - CC351T3 (2)
CRANKSHAFT SEAL 25X40X7 MA173 - CC251 - CC256 - CC351T3 (2) Ref: MA173-003
Number: 2 (A)
Quadrants: 3B
VALVE TAPPET MA173 - CC251 - CC256 - CC351T3 (14)
VALVE TAPPET MA173 - CC251 - CC256 - CC351T3 (14) Ref: MA173-006
Number: 13 (A)
Quadrants: 3B
PRESSURE WASHER 36X25X1 MA173 - CC251 - CC256 - CC351T3 (17)
PRESSURE WASHER 36X25X1 MA173 - CC251 - CC256 - CC351T3 (17) Ref: MA173-008
Number: 16 (A)
Quadrants: 3B
FUEL TANK MA173 - CC251 - CC256 - CC351T3 (49)
FUEL TANK MA173 - CC251 - CC256 - CC351T3 (49) Ref: MA173-013
Number: 51 (A)
Quadrants: 2C
COIL MA173 - CC251 - CC256 - CC351T3 (69)
COIL MA173 - CC251 - CC256 - CC351T3 (69) Ref: MA173-020
Number: 70 (A)
Quadrants: 2B
HEAD GASKET MA173 - CC251 - CC256 - CC351T3 (80)
HEAD GASKET MA173 - CC251 - CC256 - CC351T3 (80) Ref: MA173-024
Number: 83 (A)
Quadrants: 2B
INTAKE VALVE MA173 - CC251 - CC256 - CC351T3 (82)
INTAKE VALVE MA173 - CC251 - CC256 - CC351T3 (82) Ref: MA173-025
Number: 85 (A)
Quadrants: 2B
EXHAUST VALVE MA173 - CC251 - CC256 - CC351T3 (83)
EXHAUST VALVE MA173 - CC251 - CC256 - CC351T3 (83) Ref: MA173-026
Number: 86 (A)
Quadrants: 2B
VALVE GUIDE PLATE MA173 - CC251 - CC256 - CC351T3 (98)
VALVE GUIDE PLATE MA173 - CC251 - CC256 - CC351T3 (98) Ref: MA173-030
Number: 101 (A)
Quadrants: 2A
COMPLETE AIR FILTER COVER MA173 - CC251 - CC256 - CC351T3 (116-120)
COMPLETE AIR FILTER COVER MA173 - CC251 - CC256 - CC351T3 (116-120) Ref: MA173-041
Number: 117-121 (A)
Quadrants: 3A
AIR FILTER 125x100x28 MA173 (119), MA173E (120) - CC251 CC251T CC251TE CC256 CC256TV CC351T3
AIR FILTER 125x100x28 MA173 (119), MA173E (120) - CC251 CC251T CC251TE CC256 CC256TV CC351T3 Ref: MA173-042
Number: 120 (A)
Quadrants: 3A
TUBO GASES MA173 - MA173E (32)
TUBO GASES MA173 - MA173E (32) Ref: MA173-051
Number: 32 (A)
Quadrants: 2C
