ELECTRIC HARVESTER ANOVA - VAR600
Instructions

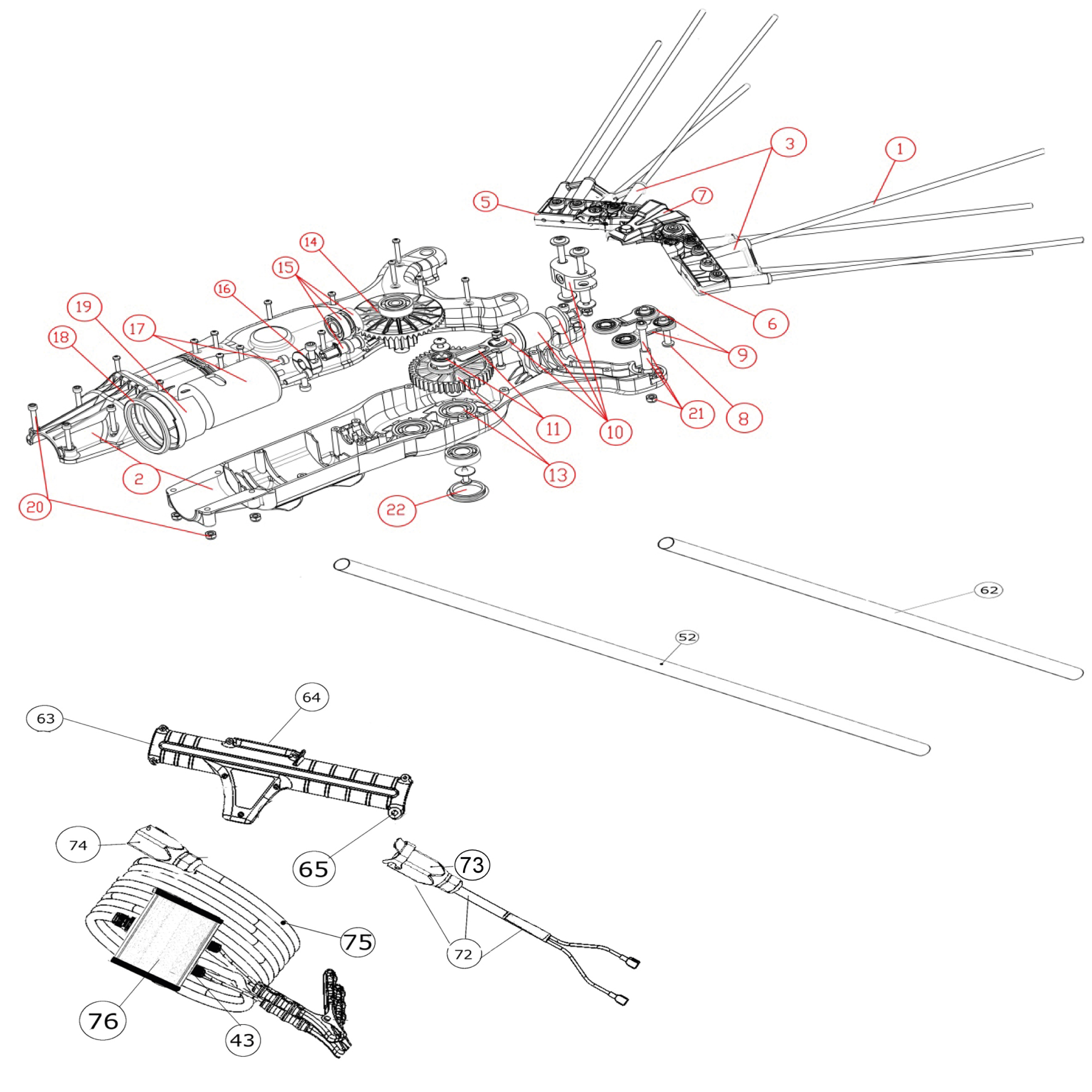

Select a quadrant on the exploded view to display the parts in that area. You can zoom into the exploded view.
A
B
C
1
2
3
Spare parts
SCREW + BUSHING + NUT CONNECTING ROD - ROD SUPPORT D226ML-5 (21) VAR600 (8)
Ref: D226ML-5-08
Number: 8
Quadrants: 1B, 2C
D226ML-5-08
8
1B, 2C
0,2,1;0,1,0
D226ML-5-13
7
1B
0,1,0
VAR600-001
1
1B, 1C
0,2,0;0,1,0
VAR600-002
13
1B, 2B
0,1,1;0,1,0
VAR600-003
15
1A
0,0,0
VAR600-004
14
1A, 1B
0,1,0;0,0,0
VAR600-005
11
1B, 2B
0,1,1;0,1,0
VAR600-006
10
1B, 2B
0,1,1;0,1,0
VAR600-007
2
1A, 1B, 2A, 2B
0,0,1;0,1,1;0,0,0;0,1,0
VAR600-008
7
1B
0,1,0
VAR600-009
6
1B, 1C
0,1,0;0,2,0
VAR600-011
19
1A, 2A
0,0,1;0,0,0
VAR600-013
9
1B, 1C
0,1,0;0,2,0
VAR600-014
16
1A, 2A
0,0,0;0,0,1
VAR600-015
18
1A, 2A
0,0,1;0,0,0
VAR600-016
3
1B, 1C
0,2,0;0,1,0
VAR600-017
52
2A, 2B, 2C, 3C
0,1,1;0,0,1;0,2,2;0,2,1
VAR600-018
62
2B, 2C
0,2,1;0,1,1
VAR600-019
63
2A, 3A, 3B
0,0,2;0,1,2;0,0,1
VAR600-020
64
2A, 3A
0,0,1;0,0,2
VAR600-021
65
3A, 3B
0,1,2;0,0,2
VAR600-022
72
3B
0,1,2
VAR600-023
73
3B
0,1,2
VAR600-024
74
3A
0,0,2
POWER SUPPLY CABLE COMPLETE WITH TRANSFORMER VAR600 VAR700 (75)
Ref: VAR600-025
Number: 75
Quadrants: 3A
VAR600-025
75
3A
0,0,2
VAR600-027
11
1B, 2B
0,1,1;0,1,0
VAR600-028
10
1B, 2B
0,1,1;0,1,0
VAR600-029
7
1B
0,1,0
VAR600-030
6
1B, 1C
0,2,0;0,1,0
RIGHT PROTECTIVE BRACKET FOR 5 RODS VAR600 (3), D226ML-5 (33)
Ref: VAR600-031
Number: 3
Quadrants: 1B, 1C
VAR600-031
3
1B, 1C
0,2,0;0,1,0
LEFT PROTECTIVE BRACKET FOR 5 RODS VAR600 (3), D226ML-5 (33)
Ref: VAR600-032
Number: 3
Quadrants: 1B, 1C
VAR600-032
3
1B, 1C
0,2,0;0,1,0
