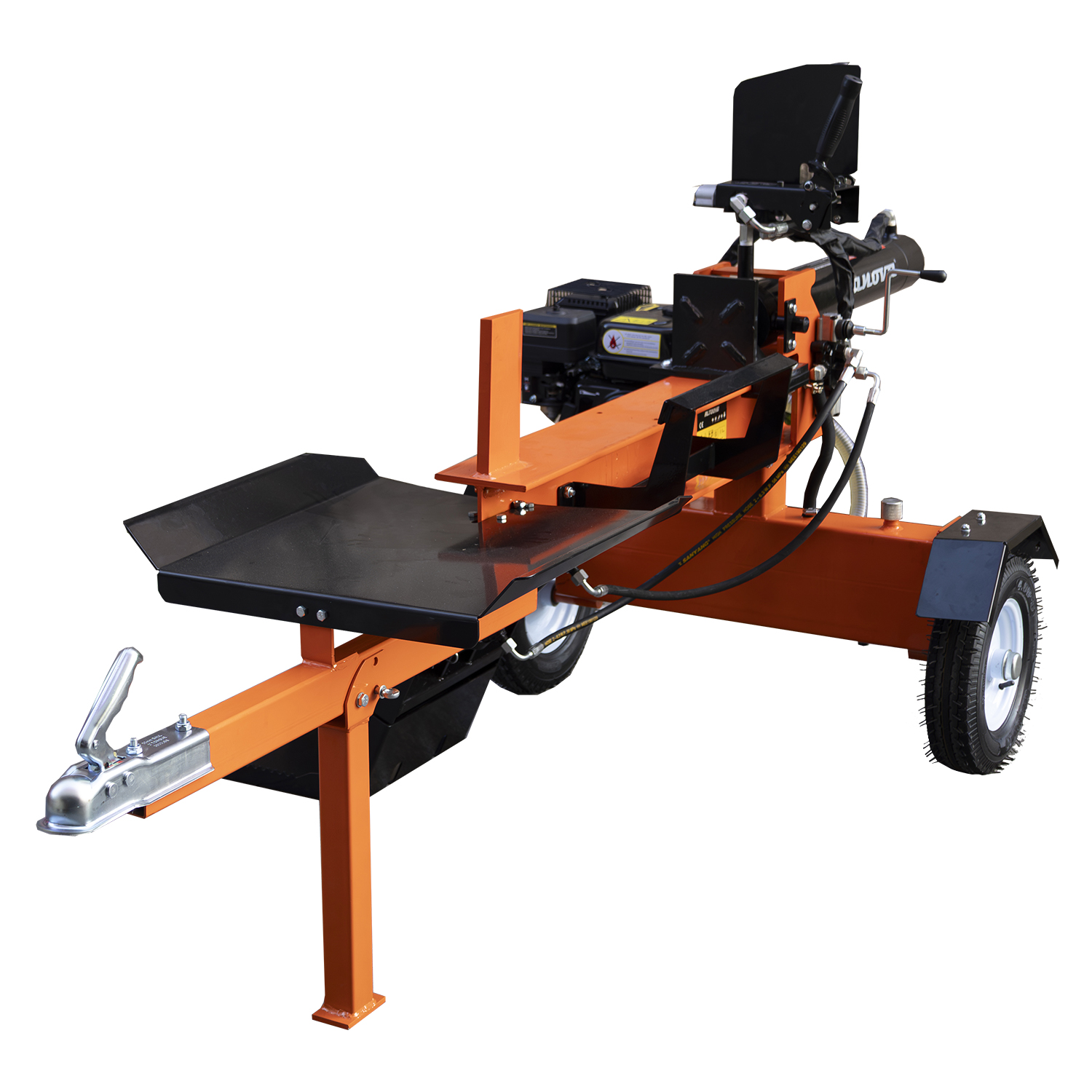

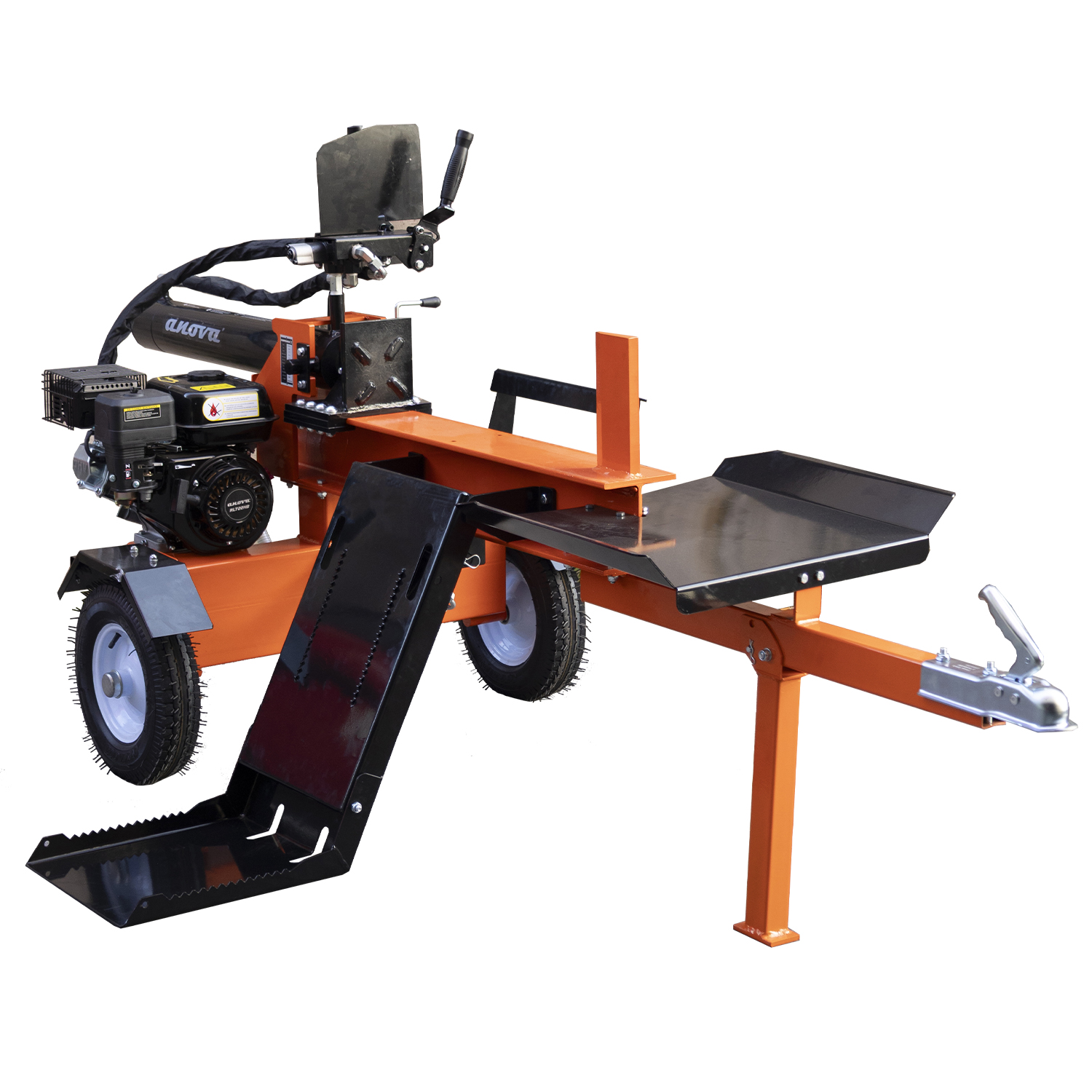

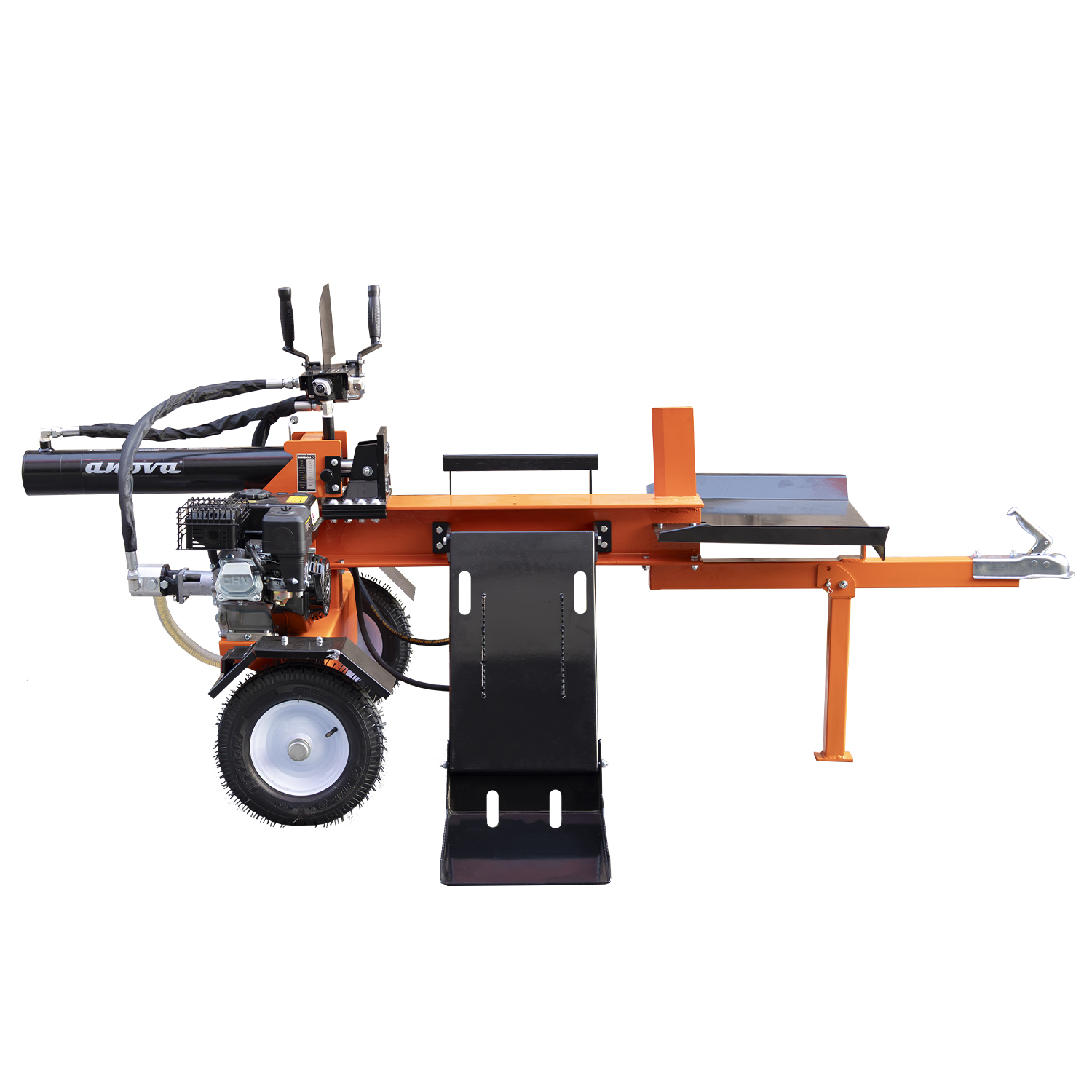

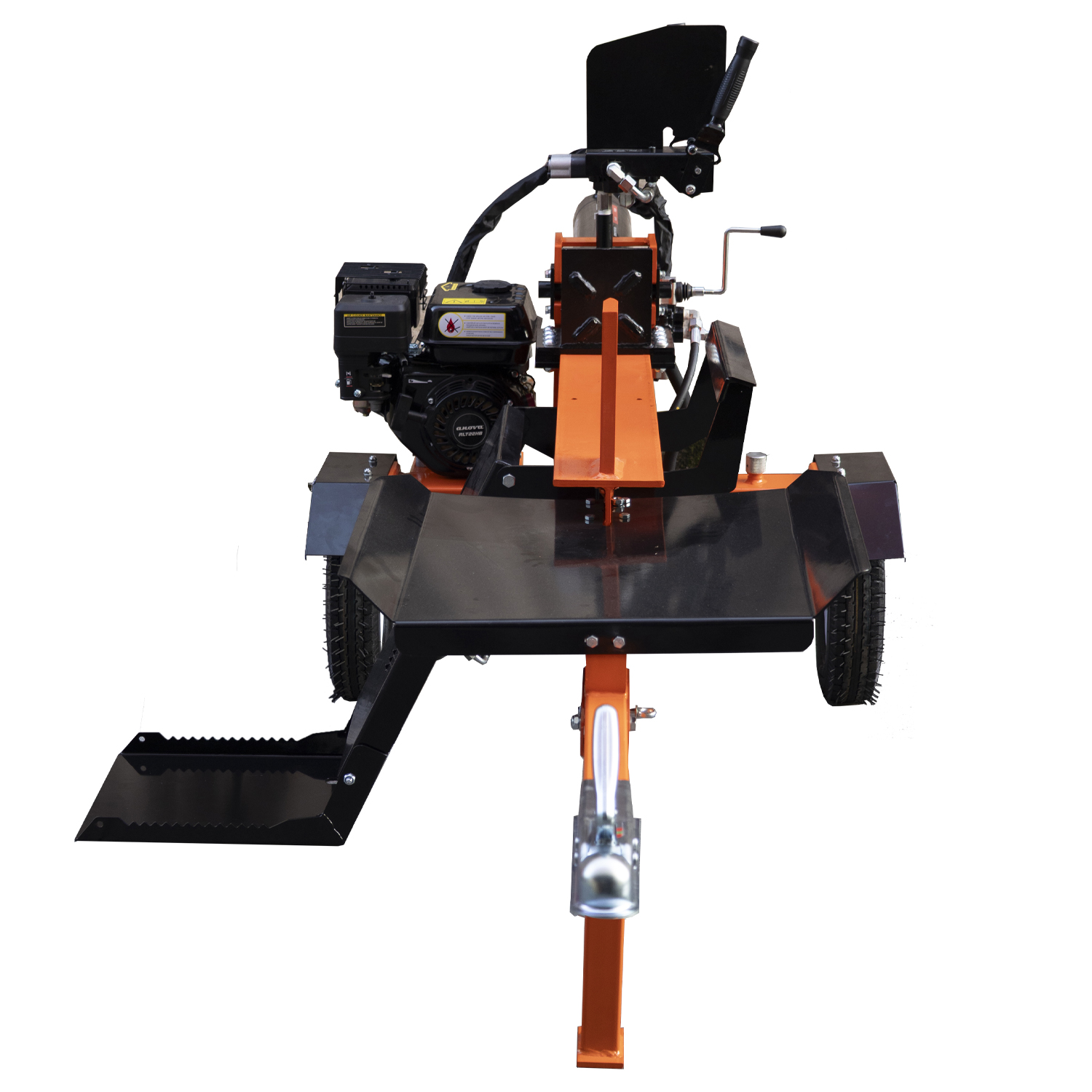

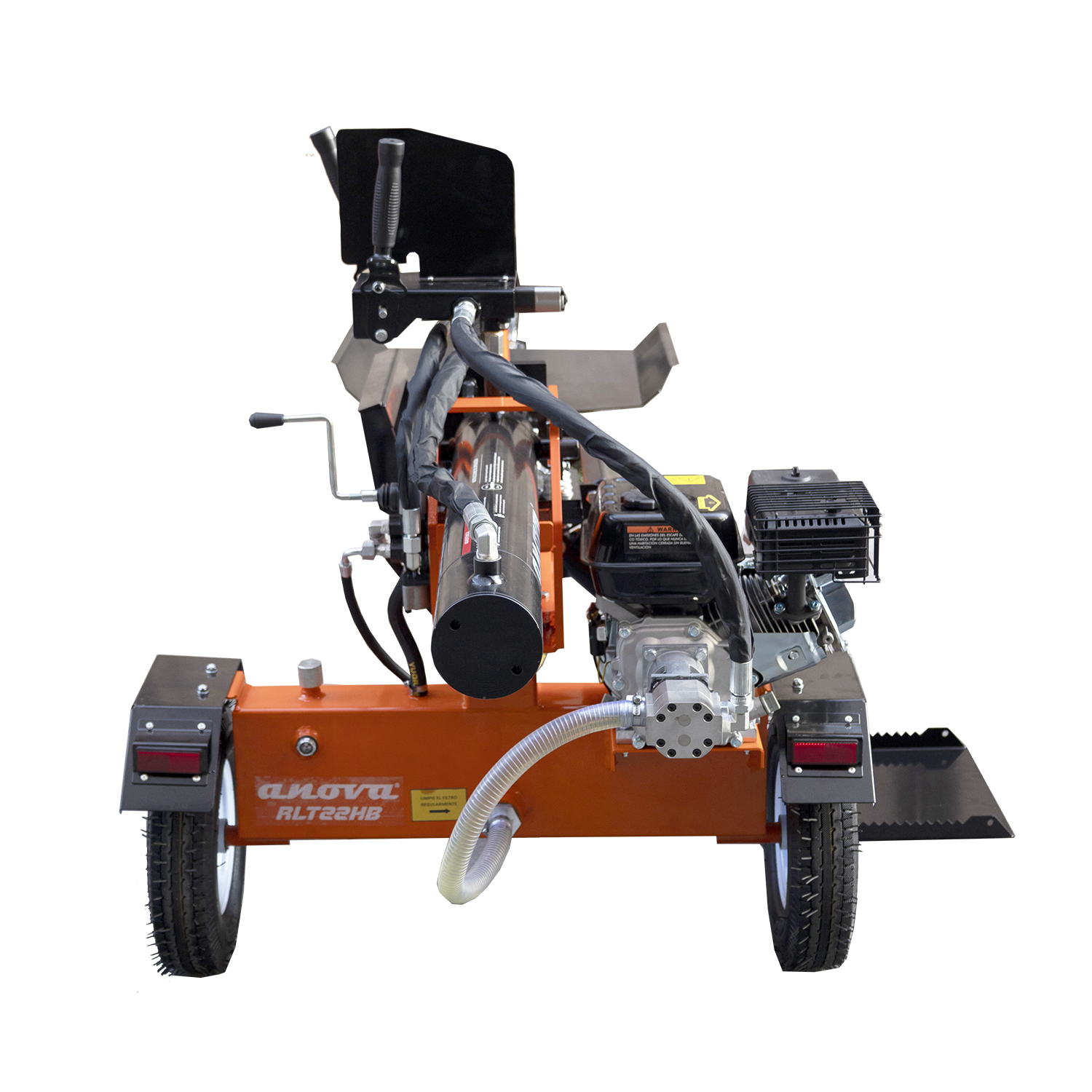

Designed for intensive tasks, this horizontal log splitter can split large logs with a pressure of 22 tons. Its 208 cc gasoline-powered engine offers constant autonomy and performance in forestry or agricultural environments. It incorporates a hydraulic lift arm to load heavy logs, reducing operator effort and improving the work rate. Its cutting capacity of up to 65 cm in length and 50 cm in diameter makes it easy to break bulky pieces, and thanks to the horizontal arrangement, stability is achieved during use.
7HP HORIZONTAL LOG SPLITTER WITH LIFTING ARM - 22TON
7HP HORIZONTAL LOG SPLITTER WITH LIFTING ARM - 22TON
7HP HORIZONTAL LOG SPLITTER WITH LIFTING ARM - 22TON
| ENGINE | PETROL |
| CYLINDER | 208 CC |
| POTENCIA | 7 HP |
| WORK PRESSURE | 22 TN |
| LENGTH OF WORK | 65 CM |
| Ø MAX. CUTTING | 50 CM |
| OIL TANK CAPACITY | 13 L |

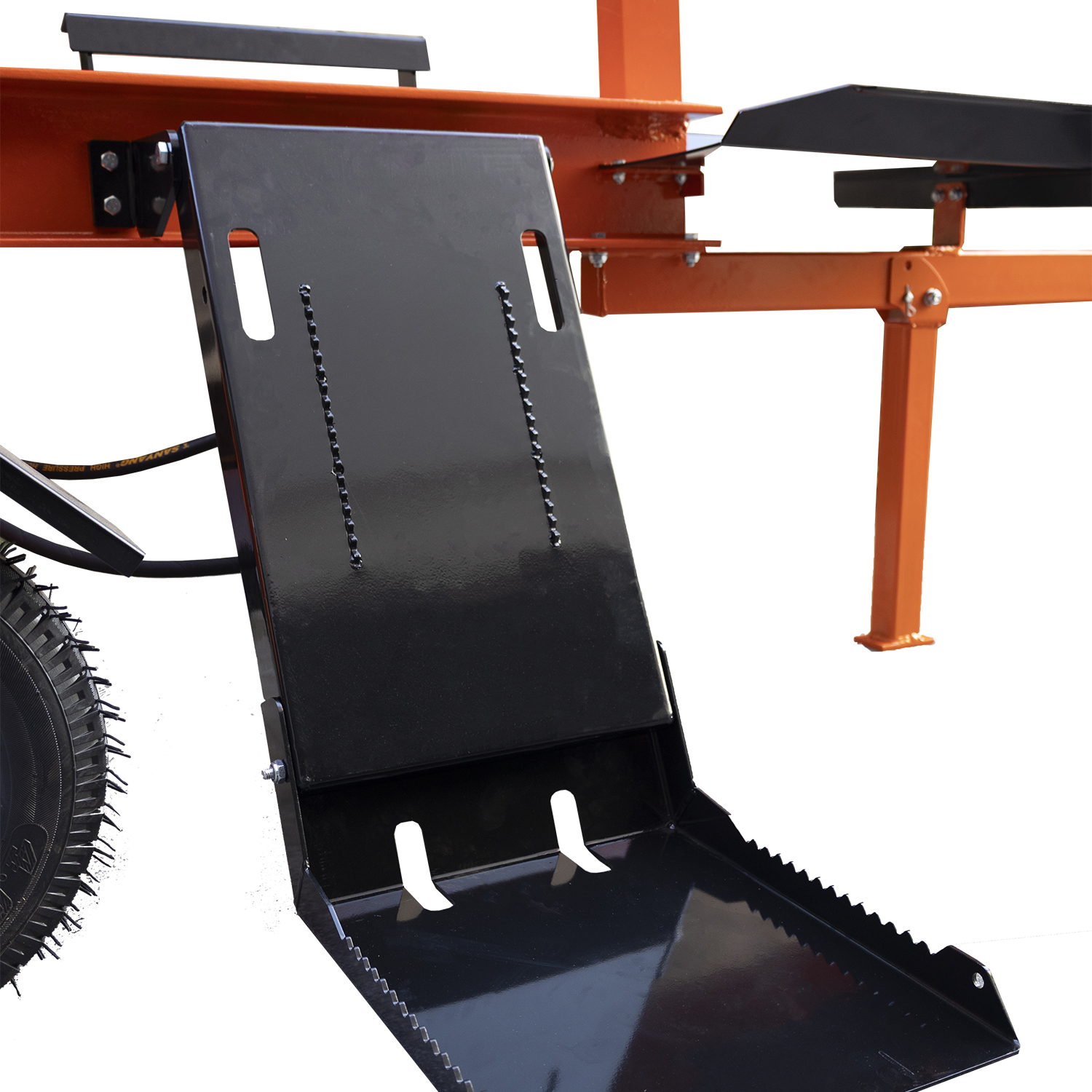

| LIFTING ARM | HYDRAULIC |
| WEIGHT | 200 KG |
| OIL TYPE ENGINE | SAE 30 |
| QUANTITY OIL ENGINE | 0,6 L |
| REF. OIL ENGINE | 99-603 / 100005E - 0,6 L |
| HYDRAULIC TYPE | HYDRAULIC ISO VG46 |
| REF. HYDRAULIC OIL | 99-6039 (20L) |
| HYDRAULIC QUANTITY | 20 L |
| TARIFF CODE | 84659600 |
| GTIN CODE | 8435673784407 |
Exclusive access for distributors. We do not sell to the final consumer.
Features
Exploded views
Manuals
Features
- With trunk lift arm
- Not designed for road use
