Explosionszeichnung RC800

[RC800] ROBOTER-RASENMÄHER ANOVA - 800M

Anweisungen

Wählen Sie einen Quadranten in der Explosionsansicht, um die Teile in diesem Bereich anzuzeigen. Sie können in die Explosionsdarstellung hineinzoomen.

Ref: RC800 - ROBOTER-RASENMÄHER ANOVA - 800M

Siehe die Stücke
A
B
C
1
2
3

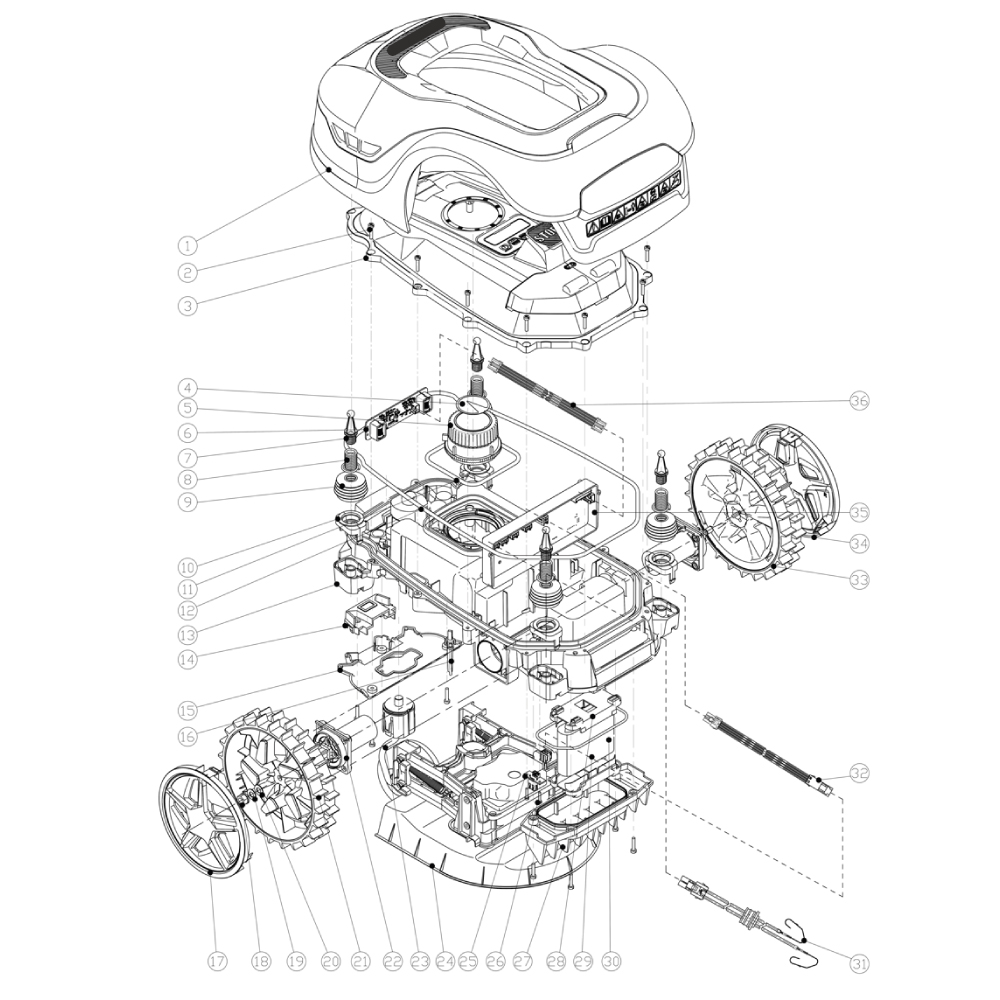

Parte A

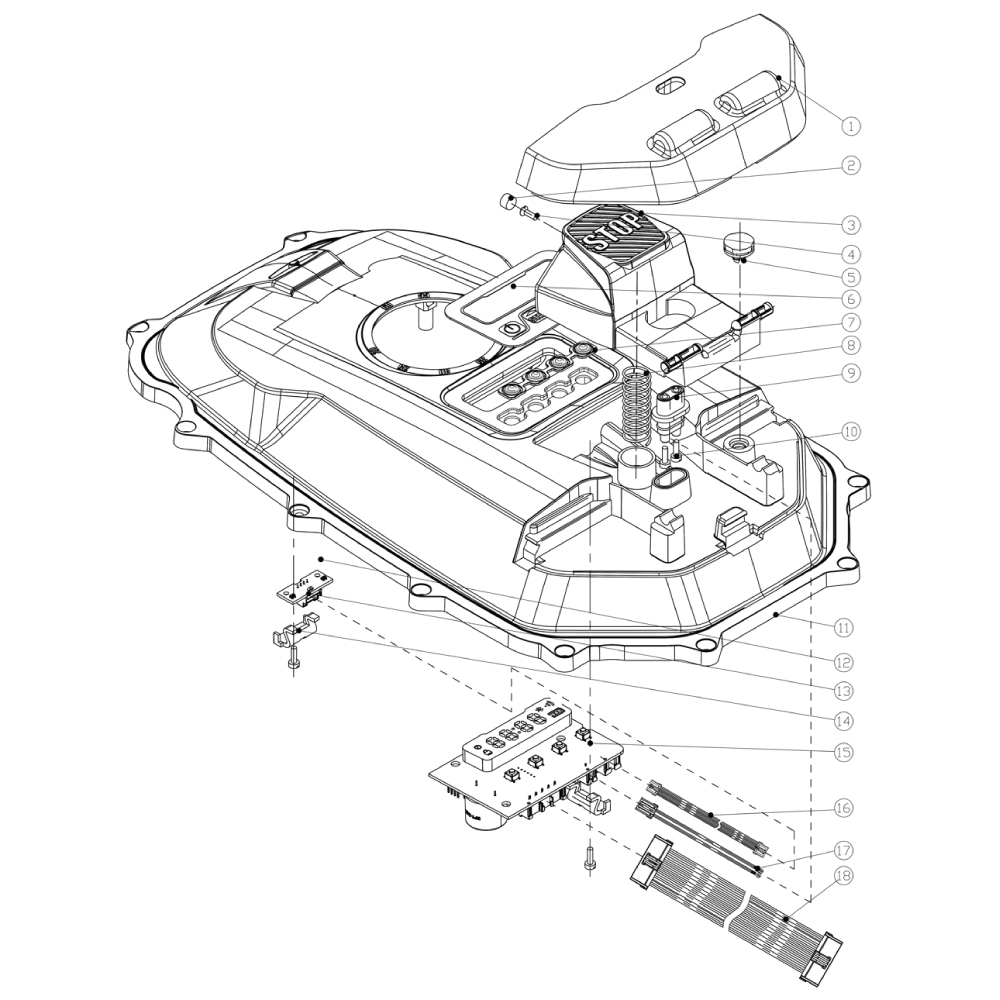

Parte B

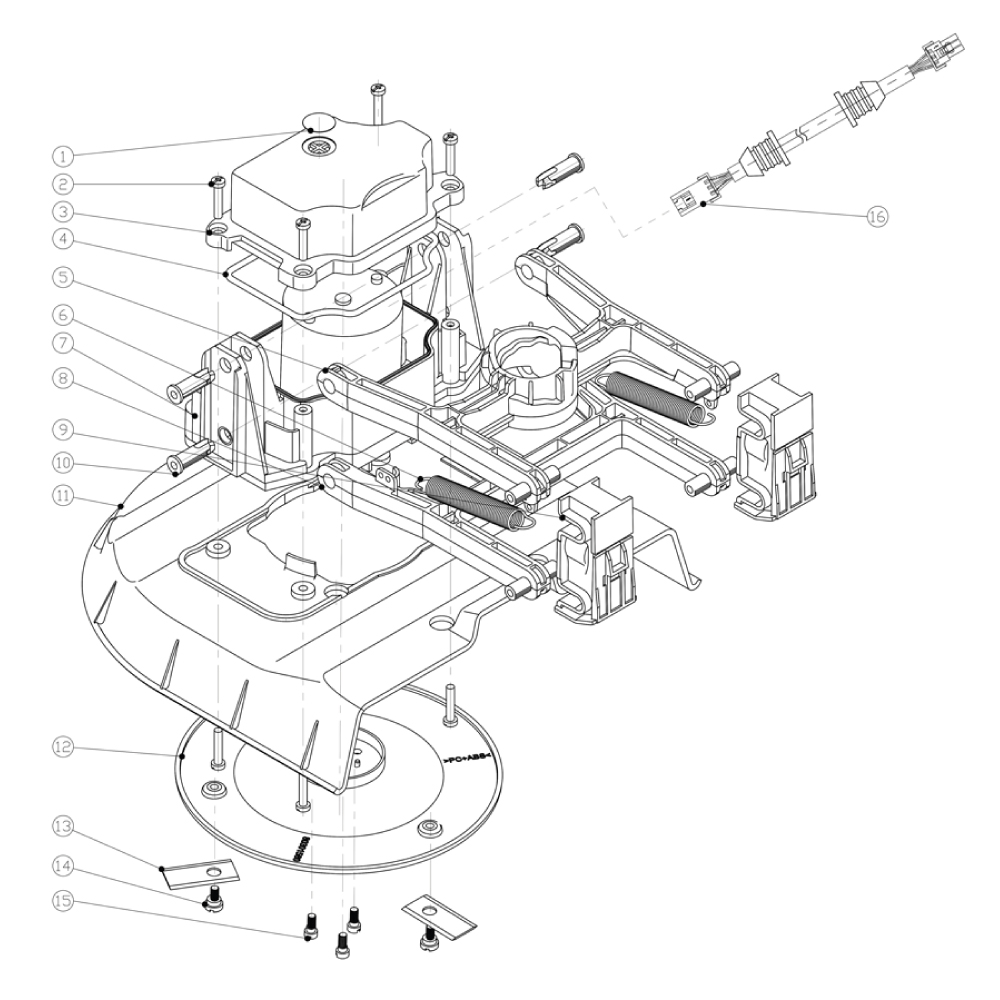

Parte C

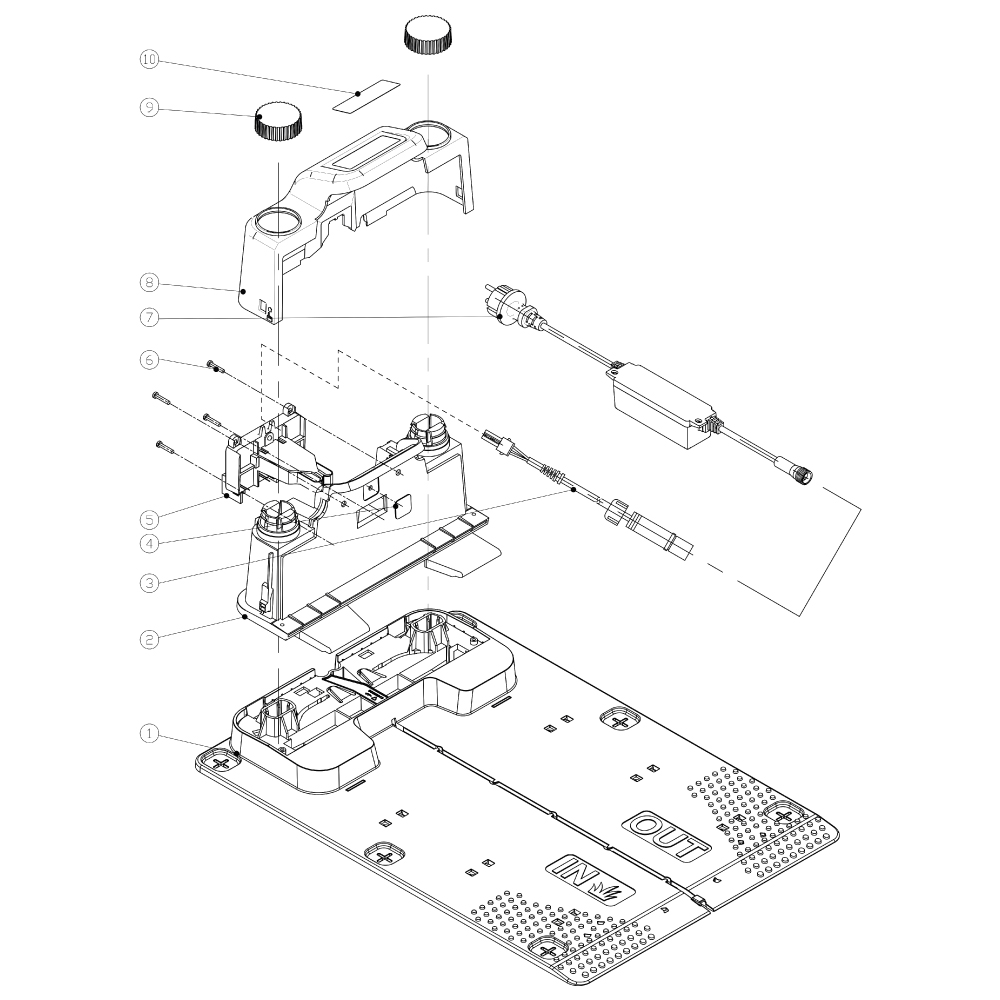

Parte D
ROBOTER SCHNEIDEROBOTER RC800 5,0Ah BATTERIE (SAMSUNG ZELLE)
ROBOTER SCHNEIDEROBOTER RC800 5,0Ah BATTERIE (SAMSUNG ZELLE) Ref: RC800-01
Nummer: 29 (A)
Quadranten: 3B
LADEADAPTER 3A RC800
LADEADAPTER 3A RC800 Ref: RC800-02
Nummer: 7 (D)
Quadranten: 1B, 2B, 2C
LADESTATION BASIS RC500 RC800 RC500 RC800
LADESTATION BASIS RC500 RC800 RC500 RC800 Ref: RC500-01
Nummer: 1-6, 8, 9, 10 (D)
Quadranten: 1A, 1B, 2A, 2B, 3A, 3B, 3C
KLINGE RC500, RC800 (13)
KLINGE RC500, RC800 (13) Ref: RC500-06
Nummer: 13, 14, 15 (C)
Quadranten: 3A, 3B
SCHRAUBE RC500, RC800 (14)
SCHRAUBE RC500, RC800 (14) Ref: RC500-07
Nummer: 14 (C)
Quadranten: 3A, 3B
TAPON SUJECION TAPA SOPORTE CARGA RC500 - RC800 (9)
TAPON SUJECION TAPA SOPORTE CARGA RC500 - RC800 (9) Ref: RC500-10
Nummer: 9 (D)
Quadranten: 1A, 1B
SOPORTE ENCHUFE DE CARGA CON TAPA RC500 - RC800 (2-8)
SOPORTE ENCHUFE DE CARGA CON TAPA RC500 - RC800 (2-8) Ref: RC500-11
Nummer: 2, 8 (D)
Quadranten: 1A, 1B, 2A, 2B
ACOPLE PLACA DE CARGA RC500 - RC800 (5)
ACOPLE PLACA DE CARGA RC500 - RC800 (5) Ref: RC500-12
Nummer: 5 (D)
Quadranten: 2A
INDICADOR BASE DE CARGA RC500 - RC800 (4)
INDICADOR BASE DE CARGA RC500 - RC800 (4) Ref: RC500-13
Nummer: 4 (D)
Quadranten: 2B
CABLE PLACA BASE DE CARGA RC500 - RC800 (3)
CABLE PLACA BASE DE CARGA RC500 - RC800 (3) Ref: RC500-14
Nummer: 3 (D)
Quadranten: 2B
CABLE CONEXION PLACA VISUALIZACION RC500 - RC800 (18)
CABLE CONEXION PLACA VISUALIZACION RC500 - RC800 (18) Ref: RC500-15
Nummer: 18 (B)
Quadranten: 3C
CABLE CONEXION SENSOR DE LLUVIA RC500 - RC800 (17)
CABLE CONEXION SENSOR DE LLUVIA RC500 - RC800 (17) Ref: RC500-16
Nummer: 17 (B)
Quadranten: 3C
CABLE DE CONEXION SENSOR DE CHOQUE RC500 - RC800 (16)
CABLE DE CONEXION SENSOR DE CHOQUE RC500 - RC800 (16) Ref: RC500-17
Nummer: 16 (B)
Quadranten: 3C
PLACA PANTALLA DIGITAL RC500 - RC800 (15)
PLACA PANTALLA DIGITAL RC500 - RC800 (15) Ref: RC500-18
Nummer: 15 (B)
Quadranten: 3B
SOPORTE PLACA SENSOR CHOQUE RC500 - RC800 (14)
SOPORTE PLACA SENSOR CHOQUE RC500 - RC800 (14) Ref: RC500-19
Nummer: 14 (B)
Quadranten: 2A
SENSOR DE CHOQUE RC500 - RC800 (13)
SENSOR DE CHOQUE RC500 - RC800 (13) Ref: RC500-20
Nummer: 13 (B)
Quadranten: 2A
TAPA SUPERIOR RC500 - RC800 (11)
TAPA SUPERIOR RC500 - RC800 (11) Ref: RC500-21
Nummer: 3 (A), 11 (B)
Quadranten: 1A, 1B, 1B, 2A, 2B, 2C
SENSOR DE LLUVIA RC500 - RC800 (9)
SENSOR DE LLUVIA RC500 - RC800 (9) Ref: RC500-22
Nummer: 9 (B)
Quadranten: 2C
MUELLE BOTON DE STOP RC500 - RC800 (8)
MUELLE BOTON DE STOP RC500 - RC800 (8) Ref: RC500-23
Nummer: 8 (B)
Quadranten: 2B
GOMA BOTON PANTALLA DIGITAL RC500 - RC800 (7)
GOMA BOTON PANTALLA DIGITAL RC500 - RC800 (7) Ref: RC500-24
Nummer: 7 (B)
Quadranten: 2B
BOTONERA PANTALLA DIGITAL RC500 - RC800 (6)
BOTONERA PANTALLA DIGITAL RC500 - RC800 (6) Ref: RC500-25
Nummer: 6 (B)
Quadranten: 1B
BOTON DE STOP RC500 - RC800 (4)
BOTON DE STOP RC500 - RC800 (4) Ref: RC500-26
Nummer: 3 (B)
Quadranten: 1B
IMAN BOTON DE STOP RC500 - RC800 (2)
IMAN BOTON DE STOP RC500 - RC800 (2) Ref: RC500-27
Nummer: 2 (B)
Quadranten: 1B
PLATO CORTE ROBOT CORTACÉSPED ANOVA RC500 RC800
PLATO CORTE ROBOT CORTACÉSPED ANOVA RC500 RC800 Ref: RC500-28
Nummer: 12 (C)
Quadranten: 3A, 3B
RUEDA DELANTERA ROBOT CORTACÉSPED RC500 RC800
RUEDA DELANTERA ROBOT CORTACÉSPED RC500 RC800 Ref: RC500-29
Nummer: 23 (A)
Quadranten: 3B
CABLE CONEXIÓN MOTOR RC500-RC800 (16)
CABLE CONEXIÓN MOTOR RC500-RC800 (16) Ref: RC500-31
Nummer: 16 (C)
Quadranten: 1C
MUELLE PLATO DE CORTE RC500-RC800(6)
MUELLE PLATO DE CORTE RC500-RC800(6) Ref: RC500-32
Nummer: 6 (C)
Quadranten: 2B
TAPACUBOS RUEDA DERECHA RC500-RC800 (34)
TAPACUBOS RUEDA DERECHA RC500-RC800 (34) Ref: RC500-34
Nummer: 34 (A)
Quadranten: 2C
CABLE CONEXIÓN PLACA BASE-BATERÍA RC500-RC800 (32)
CABLE CONEXIÓN PLACA BASE-BATERÍA RC500-RC800 (32) Ref: RC500-35
Nummer: 32 (A)
Quadranten: 3C
CABLES DE CARGA RC500-RC800 (31)
CABLES DE CARGA RC500-RC800 (31) Ref: RC500-36
Nummer: 31 (A)
Quadranten: 3C
PLACA USB RC500-RC800 (25)
PLACA USB RC500-RC800 (25) Ref: RC500-37
Nummer: 25 (A)
Quadranten: 3B
TUERCA APRIETE RUEDA RC500-RC800 (18)
TUERCA APRIETE RUEDA RC500-RC800 (18) Ref: RC500-38
Nummer: 18 (A)
Quadranten: 3A
TAPACUBOS RUEDA IZQUIERDA RC500-RC800 (17)
TAPACUBOS RUEDA IZQUIERDA RC500-RC800 (17) Ref: RC500-39
Nummer: 17 (A)
Quadranten: 3A
JUNTA SELLADO TAPA SUPERIOR RC500-RC800 (12)
JUNTA SELLADO TAPA SUPERIOR RC500-RC800 (12) Ref: RC500-40
Nummer: 12 (A)
Quadranten: 2B
JUNTA SELLADO TAPA AJUSTE ALTURA RC500-RC800 (11)
JUNTA SELLADO TAPA AJUSTE ALTURA RC500-RC800 (11) Ref: RC500-41
Nummer: 11(A)
Quadranten: 2B
PROTECTOR MUELLE OSCILANTE RC500-RC800 (9)
PROTECTOR MUELLE OSCILANTE RC500-RC800 (9) Ref: RC500-42
Nummer: 9 (A)
Quadranten: 2B
MUELLE OSCILANTE RC500-RC800 (8)
MUELLE OSCILANTE RC500-RC800 (8) Ref: RC500-43
Nummer: 8 (A)
Quadranten: 2B
SESOR PROXIMIDAD RC500-RC800 (6)
SESOR PROXIMIDAD RC500-RC800 (6) Ref: RC500-44
Nummer: 6 (A)
Quadranten: 2B
PEGATINA INDICADOR ALTURA RC500-RC800 (4)
PEGATINA INDICADOR ALTURA RC500-RC800 (4) Ref: RC500-45
Nummer: 4 (A)
Quadranten: 2B
MOTOR COMPLETO RC500-RC800 (22)
MOTOR COMPLETO RC500-RC800 (22) Ref: RC500-46
Nummer: 22 (A)
Quadranten: 3B
PLACA BASE RC500-RC800 (35)
PLACA BASE RC500-RC800 (35) Ref: RC500-47
Nummer: 35 (A)
Quadranten: 2B
CHASSIS RC500-RC800 (13)
CHASSIS RC500-RC800 (13) Ref: RC500-48
Nummer: 13 (A)
Quadranten: 2B
PLATAFORMA DE CORTE RC500-RC800 (11)
PLATAFORMA DE CORTE RC500-RC800 (11) Ref: RC500-49
Nummer: 11 (C) , 24 (A)
Quadranten: 2A, 2B, 3B
BIELA INFERIOR RC500-RC800(8)
BIELA INFERIOR RC500-RC800(8) Ref: RC500-50
Nummer: 8 (C)
Quadranten: 2B
BIELA SUPERIOR RC500-RC800 (5)
BIELA SUPERIOR RC500-RC800 (5) Ref: RC500-51
Nummer: 5 (C)
Quadranten: 2B
RUEDA DERECHA RC500-RC800 (33)
RUEDA DERECHA RC500-RC800 (33) Ref: RC500-52
Nummer: 33 (A)
Quadranten: 2C
RUEDA IZQUIERDA RC500-RC800 (21)
RUEDA IZQUIERDA RC500-RC800 (21) Ref: RC500-53
Nummer: 21 (A)
Quadranten: 3A
EJE ROTACIÓN PLATO DE CORTE RC500-RC800(10)
EJE ROTACIÓN PLATO DE CORTE RC500-RC800(10) Ref: RC500-54
Nummer: 10 (C)
Quadranten: 2A
BASE BIELAS RC500-RC800 (9)
BASE BIELAS RC500-RC800 (9) Ref: RC500-55
Nummer: 9 (C)
Quadranten: 2B, 2C
TAPA MOTOR RC500-RC800 (3)
TAPA MOTOR RC500-RC800 (3) Ref: RC500-56
Nummer: 3 (C)
Quadranten: 1A, 1B
SOPORTE BATERÍA RC500-RC800(28)
SOPORTE BATERÍA RC500-RC800(28) Ref: RC500-57
Nummer: 28 (A)
Quadranten: 3B
TAPA BATERIA RC500-RC800 (27)
TAPA BATERIA RC500-RC800 (27) Ref: RC500-58
Nummer: 27 (A)
Quadranten: 3B
BLOQUEO TOPE ALTURA RC500-RC800 (16)
BLOQUEO TOPE ALTURA RC500-RC800 (16) Ref: RC500-59
Nummer: 16 (A)
Quadranten: 2B
TAPA BASE RC500-RC800 (15)
TAPA BASE RC500-RC800 (15) Ref: RC500-60
Nummer: 15 (A)
Quadranten: 2B, 3B
PLATINA APOYO CARGA RC500-RC800 (14)
PLATINA APOYO CARGA RC500-RC800 (14) Ref: RC500-61
Nummer: 14 (A)
Quadranten: 2B
CUBIERTA INTERMEDIA RC500-RC800 (10)
CUBIERTA INTERMEDIA RC500-RC800 (10) Ref: RC500-62
Nummer: 10 (A)
Quadranten: 2B
APOYO OSCILANTE CAPÓ RC500-RC800 (7)
APOYO OSCILANTE CAPÓ RC500-RC800 (7) Ref: RC500-63
Nummer: 7 (A)
Quadranten: 2B
REGULADOR ALTURA RC500-RC800 (5)
REGULADOR ALTURA RC500-RC800 (5) Ref: RC500-64
Nummer: 5 (A)
Quadranten: 2B
CUBIERTA CAPÓ COMPLETA RC500-RC800 (1)
CUBIERTA CAPÓ COMPLETA RC500-RC800 (1) Ref: RC500-65
Nummer: 1 (A)
Quadranten: 1B
CUBIERTA SUPERIOR RC500-RC800 (3)
CUBIERTA SUPERIOR RC500-RC800 (3) Ref: RC500-66
Nummer: 3 (A)
Quadranten: 1B
BASE MOTOR RC500-RC800(7)
BASE MOTOR RC500-RC800(7) Ref: RC500-67
Nummer: 7 (C)
Quadranten: 2A
PLATO DE CORTE COMPLETO RC500 -RC800(24)
PLATO DE CORTE COMPLETO RC500 -RC800(24) Ref: RC500-68
Nummer: - (C)
Quadranten: 2B
BASE DE CARGA RC500, RC800, RC1200, RC1600 (1)
BASE DE CARGA RC500, RC800, RC1200, RC1600 (1) Ref: RC500-80
Nummer: 1 (D)
Quadranten: 3A, 3B, 3C

Explosionszeichnung herunterladen
